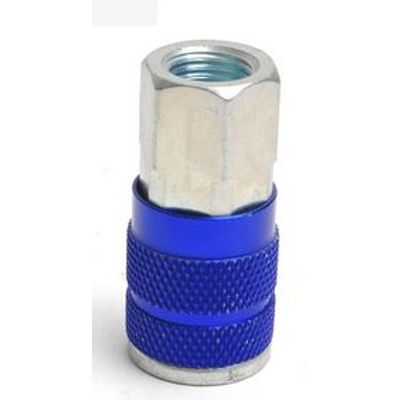

Junjie - Model JU16 -Accepts Tru Flate Type Plugs Heavy-Duty Quick Coupler
Junjie pneumatic tools and air accessories get the job done fast and right , they bring power ,precision and performance to every task .
Most popular related searches
- Accepts TRUFLATE type plugs
- Heavy-duty ,high-quality design
- Deep knurled socket sleeve for positive gripping
- Proven and positive connection using ball-locking mechanism
Applications
- sleeve type couplings are widely used to connect air lines and can also be used with low pressure fluids
- their compact and economical design uses a balls that engage the locking groove on the mating nipple . the sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple . easy to do but two hands are normally required .
- common applications include: compressed air ,water , grease, paint ,limited vacuum and limited gases .
Construction
- Socket body: zinc-plated steel
- Backnut : zinc-plated steel
- Sleeve: Aluminum
- Valve: steel
- Valve spring : steel
- Locking balls and pins : steel
- Seals :Buna-N/Nitrile
- Maximum working pressure :150 PSI
- Temperature Range :-40℉ to 225 ℉(-20℃ to 107 ℃)
- Air Flow ：35SCFM at 100 PSIG inlet with 10 PSIG pressure drop
