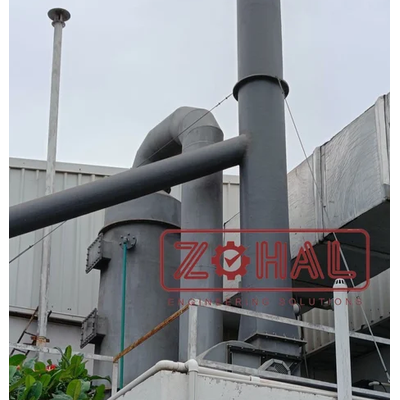

Zohal - Acid Fumes Scrubber

• Airflow (m3/h or CFM): 5000 CFM
• Power (hp/ kW): 5 HP
• Usage: Chemical Industry
• Material: FRP
• Efficiency (%): 99%
• We Provide: Consultation, Installation & Servicing
• Scrubber Type: Medium Energy Scrubber
• Brand/ Model Number: ZOHAL

1. Fume Capture:

   • Contaminated air containing acidic fumes (such as hydrochloric acid [HCl], sulfuric acid [H₂SO₄], nitric acid [HNO₃], or hydrofluoric acid [HF]) is drawn into the scrubber using a centrifugal fan or blower.

2. Scrubbing Process:

   • The polluted air is passed through a scrubbing chamber, where it comes into contact with a neutralizing liquid, typically water or a chemical solution (such as caustic soda [NaOH] or lime slurry).

3. Gas-Liquid Interaction:

   • The scrubber contains spray nozzles, packed bed media, or venturi sections that maximize the contact between the acid fumes and the scrubbing liquid.
   • During this process, the acid gases dissolve in the liquid and undergo a neutralization reaction, converting them into harmless byproducts.

4. Mist Elimination & Clean Air Release:

   • The air then passes through a demister or mist eliminator, which removes any remaining liquid droplets before releasing clean, neutralized air into the environment.

5. Waste Collection & Disposal:

   • The used scrubbing liquid, now containing neutralized acidic residues, is collected in a sump and sent for proper wastewater treatment or disposal

Advantages of Acid Fume Scrubbers

• High Efficiency – Removes 99%+ of acid gases and fumes.
• Corrosion-Resistant Materials – Made from FRP, PVC, or stainless steel to withstand harsh chemicals.
• Compliance with Environmental Regulations – Meets local and international pollution control standards.
• Customizable Designs – Can be tailored based on airflow volume, fume concentration, and industrial needs.
• Worker Safety & Health Protection – Reduces exposure to hazardous acid vapors.

Acid fume scrubbers are essential for industries that deal with corrosive acids and toxic fumes, ensuring a cleaner and safer working environment while preventing air pollution.

Types of Acid Fume Scrubbers

1. Packed Bed Scrubber:

   • Uses a high-surface-area packing material to increase gas-liquid contact.
   • Highly efficient for continuous acid fume removal.

2. Venturi Scrubber:

   • Uses high-velocity air to capture fine acid mist and particulates.
   • Suitable for industries with highly concentrated acid vapors.

3. Spray Tower Scrubber:

   • A simple and cost-effective solution for moderate acid gas emissions.
   • Uses multiple spray nozzles to disperse neutralizing liquid.
