Al Shirawi Equipment Co LLC (ASECO)

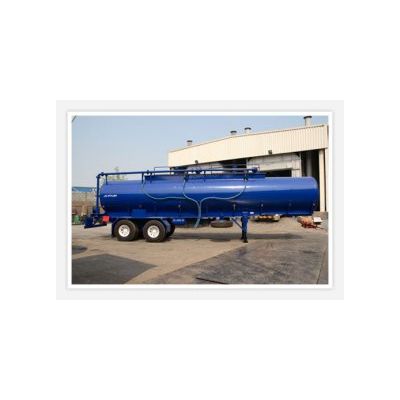

Acid Tank Trailer
The Acid tanker trailer is designed to store and for transport acid or liquid additives, etc. For oilfield use. The fill & discharge lines are located on the rear for easy access. Manholes are located at top for easy access. The interior is designed to transport acid liquid additives; the tank is equipped with extra-thickness of steel or rubber lining or fiberglass coating which requires minimum maintenance. The frac tank is equipped with ladders, walkways, handrails, discharge manifold , etc.
Most popular related searches
tank trailer
acid tank
material testing
manhole location
pipe lining
frac tank
manhole access
epoxy pipe lining
manhole
pipe lining system
General Specifications
- Capacity: 4000 USG-10500 USG
- Working Pressure: Nil
- Working Temperature: -29 C° to 100 C°
- Design Shape: Cylindrical & elliptical tank with Trailer mounted
- Material test certification: Yes
Technical Specifications
- The Acid tanker trailer is designed to store 32% concentrated acid or liquid additives etc.
- The fill, vent & discharge lines are easily accessible
- Fabricated manholes are located at top
- External grit blasted to SA 2.5 & epoxy paint system
- Pipe lines are pneumatically tested to suit design standard
- Tandem/Tridem axle with heavy duty suspension
- Internal coated with Derakane(Suitable to the stored content)
- Hydro fill tested to suit design standard
- All steel welded construction from SA36/SA516 Gr 70/equivalent steel plates
Options
- Provision for multi compartments
- The acid tanker trailer can be used in off road (on Request)
- Internal lining as per clients choice
- Special design & equipment on request
