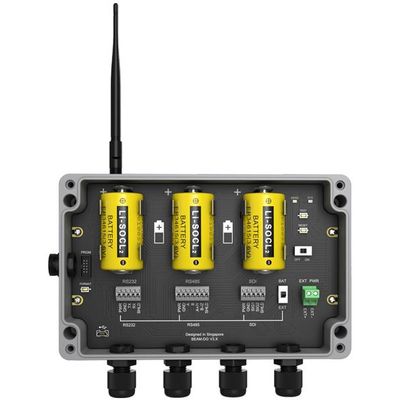

Ackcio - Model BEAM-DG -Digital Node Monitor

• Compatible with a wide range of existing digital sensors.
• Storage capacity of 65,000 readings using in-built memory.
• Connects with Ackcio Mesh, a long-range mesh network that provides rapid and reliable data communication to the Gateway and servers.
• Intelligent fault detection ability that quickly identifies errors in connecting sensors.
• Can withstand harsh environments due to heavy-duty IP67-rated cast-aluminium enclosure.
• Sensor reading compensation with environmental pressure readings from internal barometer.
• Battery life is extended with low-power frequencies and idle modes.
• External 12V power supply option to power long sensor chains.

Sensor Power Supply Options

• Battery power:
• 5V @ 200mA
• 12V @ 200mA
• 24V @ 45mA
• External Power (12V, 3A, 36W):
• 5V @ 200mA
• 12V @ 200mA
• 24V @ 45mA
• NOTE: All power modules are within ± 10% tolerance

Protocols Supported

• RS232 / RS485 / SDI-12

External Power Supply

• 8-36V DC, Min 36W

Operating Temperature

• -40°C to +80°C

Node Power Supply

• 3.6V D-type Li-SOCL2 batteries*

Internal Memory

• Up to 65,000 readings with time

Internal Barometer

• Pressure range: 300-1100 hPa
• Resolution: 0.18 Pa
• Accuracy: ±1.7 hPa

Internal Temperature Sensor

• Temperature range: -40°C to +80°C
• Resolution: 0.01°C
• Accuracy: ±1.8°C

Dimensions And Weight

• 22 cm X 14 cm X 8 cm | 1.7kg

• In-place inclinometers
• Digital tiltmeters
• Borehole extensometers
• Water level sensors
• ShapeArrays
