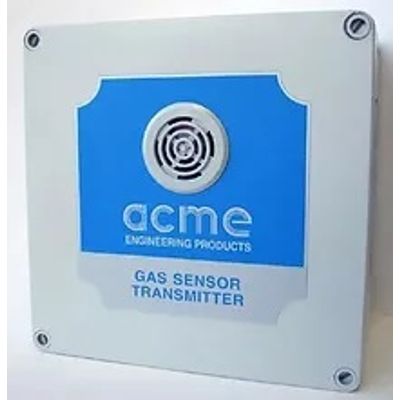

ACME GasPost - Model WS Series -Wireless Combustible Gas Sensor/Transmitter

Optionally the WS can also be powered from a 24VAC source. This version(WS-24) may have on-board relays to operate the ventilation equipment directly while transmitting their readings to the control panel for monitoring purpose only.

The WS employs a range of diffusion-type electrochemical and/or catalytic bead sensors capable of detecting a broad range of toxic and combustible gases. It provides a quick and reliable detection method of these gases with long term accuracy and trouble free operation.

Designed to act as fixed in-situ safety monitors, the WS transmitters automatically operate the mechanical ventilation system of a facility upon detection of hazardous gases, thereby protecting occupants, personnel and gas-sensitive goods and products. With the increased use of gas detection in maintenance and industrial facilities, the WS allows installers and users to meet code requirements economically using commercial-grade gas detection equipment.

The WS contains all the well-known standard features of ACME’s gas detection line; a robust enclosure, latest sensor technology and state-of-the-art electronics.

For more information about this product please click the Product Literature, Specifications and or Application Request Form links provided on this page

• FCC/IC/ETSI/CE approved RF modules
• Easy installation, virtually eliminsting cost of installation materials
• Battery operated with 2-year battry life, or powered from a local 24VAC source
• NEMA 3 robust enclosure
• Remote sensor/transceiver on a wireless communication network compatible with Acme’s new CEW-Series centralized wireless multipoint/multi-gas detection and control panel

• Energy savings through the intermittent operation of ventilation equipment in enclosed facilities.
• Suitable for garages, tunnels, warehouses and other enclosed commercial locations where a hazardous build-up of gases may occur.
• Ideal for retrofit of existing buildings to improve safety and conserve energy.
• Designed for multiple stage projects.

• Gases detected: CO, NO2 , O2 , NH3, H2, H2S Combustible gases(24VAC PowerModule only)
• Sensor Technology: 3-electrode catalytic bead electrochemical cell
• Sensing Method: Diffusion
• Power Requirement: Self-powered from a built-in 12V battery pack(8x1.5V) or hardware to a constant 24V local power source
• Operating Temp.: -4ºF to 104ºF (-20ºC to +40ºC)*
• Humidity Range: 15-95% RH
• Accuracy: +/- 2% of calibrated value
• Repeatability: 2% of signal
• Expected sensor Life: 7 years for CO only;
• 2 years for other gases.
• Battery Lifetime: 2 years
• Enclosure:
• NEMA 3
• Polystyrene
• Surface mounting
• Dimensions: 182mm X 180mm X 111mm (7.2” X 7.1” X 4.4” )
