ACME Portable - Model RMSDU 23 -Rugged Rackmount Single Display Unit

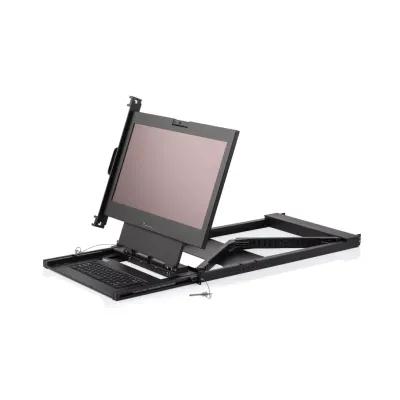

The RMSDU 23 is a robust 23-inch single screen display unit designed for rackmount integration in space-constrained environments. Occupying just 1U of rack space, it combines compact design with advanced functionality, offering features suitable for both stationary and mobile applications. It boasts a full-HD webcam and dual CAC card readers, enhancing its utility in secure environments. The display is equipped with pass-through connections for both mouse and audio, ensuring seamless integration with existing systems. The RMSDU 23 features a sophisticated mechanism that lifts, rotates, and tilts for ergonomic operation, while its sturdy machined pin assembly ensures stability during transit. Weighing just 23.5 lbs, this unit accommodates military standards with options for custom I/O setups, zone ratings, and compliance with TEMPEST SDIP-27 levels A/B/C. Its design and capabilities make it suitable for a wide range of demanding professional environments.The RMSDU offers the largest display available in a 1U rack. The compact mechanism lifts, rotates and tilts to allow ergonomic operation.
The design is also very space efficient when deployed – the keyboard only extends minimally from the rack, allowing use in tight spaces.
Also included are a full-HD web-cam, and dual CAC card reader. Pass through connections for a mouse and audio are also standard.
A strong machined pin assembly provides rigidity when closed so the system can be used in mobile rack applications. Weight is a very reasonable 23.5lb.
An ambidextrous mouse pad extension is also supplied.
- Display: 23" Full HD 1920 x 1080, 16:9 Display
- Ports: Dedicated USB ports for mouse, keyboard and webcam
- Keyboard & Mouse: 101 keys backlit keyboard with touchpad and adjustable brightness. Resistive Touchpad
- Height: 1U - 1.75" (44mm)
- Width: 17.76" (451mm)
- Depth: 31.80" (808mm)
- Rack Depth: 30" (762mm)
- Weight: ~23.5 lbs (10.6kg)
- Customization: Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.
