AcornVac - Model AV-20S-1.2-LR-BV -100 Series Vacuum Center System
FromAcornVac, Inc.
The 100 Series vacuum toilet and fixture waste system effectively and efficiently collects waste with a single 20-gallon collection tank and a PLC driven automatic control panel. Single frame, factory-assembled vacuum center. Compact size alleviates space constraints. UPC and CUPC compliant.
Most popular related searches
liquid ring vacuum pump
vacuum pump
waste collection
vacuum pressure gauge
liquid ring pump
stainless steel tank
pirani gauge
vacuum toilet
pressure gauge
water supply
- Collection Tanks Quantity : 1
- Vacuum Pump Volume (US Gal. Each) : 20
- Vacuum Pump Type : Liquid Ring
- Vacuum Pump Quantity : 1
- Vacuum Pump HP : 2
- Maximum "LPV" : 10
- Maximum Continuous Flow (GPM) : 5

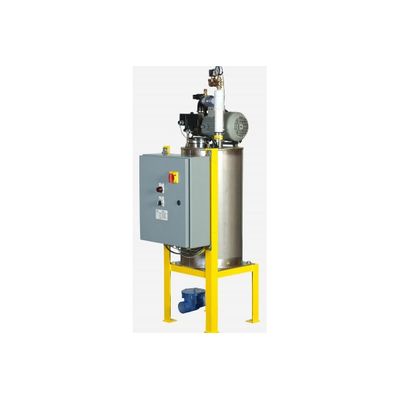

Single frame factory assembled vacuum center consists of a 20 gallon T304 stainless steel waste collection tank, a 2 HP water sealed liquid ring vacuum pump, and a PLC driven automatic control panel.
Product Function
- Compact Design: 25" [63.5 cm] Long x 18" [46cm] Wide x 5` [1.5 m] Tall
- System Weights
- Dry: 200lbs [90kg]
- Wet: 375lbs [170kg]
- 20 gallon T304 stainless steel waste collection tank has 2” pipe size top waste inlet connection and 2” swing check waste outlet connection.
- 2 HP vacuum pump has 1/2” water supply inlet. Pump runs only on-demand. Water flows only when pump is on.
- Industrial grade panel has PLC driven automation control of vacuum pump and waste collection and discharge cycles. Panel includes a main disconnect, an alarm light and an HOA switch.
- Available 3-Phase 60 Hz Voltages:
- 208 VAC – 5.8 FLA
- 480 VAC – 3.4 FLA
- Dial face analog vacuum pressure gauge.
