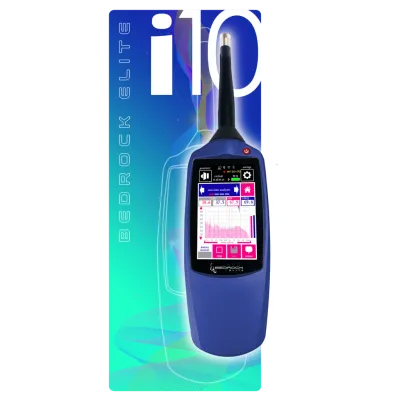

Bedrock Elite - Model i10 -Acoustic Measuring Instrument
The Bedrock Elite i10 Measuring Instrument is a premier solution for professionals engaged in noise and acoustic measurement tasks. It is designed to meet and exceed industry benchmarks, thus offering enhanced capabilities for use in sound engineering, environmental monitoring, and research. The device features wireless connectivity, a touch screen interface, and is compatible with headsets. It supports dual input channels and includes a comprehensive array of modules for varied applications. The i10 is built with an aerospace-grade alloy frame, ensuring durability, along with a hardened glass display and ABS plastic components. It is equipped with necessary accessories such as a microphone, calibration certificate, USB cable, and comes with a ruggedized waterproof carrying case. The Bedrock Elite i10 is tailored to deliver precise and reliable performance crucial for sophisticated acoustic assessments.Most popular related searches
acoustics monitoring system
acoustic measurement
type 1 sound level meter
real-time analyzer
sound level meter
level monitoring
environmental monitoring
building acoustics
acoustic instrument
class 1 sound level meter
Introducing the Bedrock Elite i10 Measuring Instrument, your ultimate solution for advanced noise and acoustic measurements. Designed to surpass industry standards, the Bedrock Elite i10 offers superior functionality and cutting-edge features for professionals in sound engineering, environmental monitoring, and research.
- Class 1 / Type 1 sound level meter (fast, slow, impulse; A/C.Z-weighting, Leq, SEL) conforming to IEC-61672 class 1, ANSI S1.4 Type 1.
- STIPA measuring (quick screening mode, pro mode, averaging mode)
- Full STI using the direct method (65 second measurement).
- Speech Level Measurements cf IEC-60268 Annex J.
- Statistical acoustics (L10, L90, etc)
- Real Time Analyzer (1/12, 1/6, 1/3 and 1/1 octave)
- FFT analyzer (detailed frequency analysis up to 32768 lines)
- RT60 measuring (reverberation times: T20/T30/EDT).
- Noise Curves (NR, NC, PNC, NCB, RC, RC mark II)
- THD+N
- Fundamental frequency estimation
- Building acoustics: D, R’, DnT, Dn
- Building acoustics: SRI/STC.
- Audio oscilloscope
- Long term logging and monitoring (LEQ, RTA)
- AC Volt meter for audio line level measurements (dBU, dBV, V rms)
- Calibrated audio recording
- USB audio device mode – calibrated audio for your PC-based software applications
- More functionality will be added through free future firmware upgrades.
- 20 – 20.000 Hz frequency range
- Dynamic range 24-124 dB (with included microphone; up to 145 with attenuator sold separately)
- High resolution capacitive touch TFT display
- 32 GB of storage (of which at least 30 GB available for user data)
- Access to stored data and recorded audio through high-speed USB2.0 interface
- Wireless control via Bluetooth and WiFi
- Second input channel
- Integrated signal generator (noise, STI signals, sines, sweeps)
- Headset jack (for monitoring and recording voice notes)
- Integrated long-life battery pack, rechargeable via USB Power Delivery.
- Complies with IEC 60268-16 rev. 4, IEC 61672 Class 1, ANSI S1.4 Type 1, IEC-62160 class 0 (RTA), ISO-3382
- All necessary accessories (such as microphone, charger, cables, windscreen and a ruggedized waterproof carrying case) are included
The Bedrock Elite i10 is constructed with an aerospace-grade alloy frame, hardened glass for the display, and ABS, a durable plastic.
