Acrel - Model PZ series - Digital Panel ...

Acrel - Model PZ series -Digital Panel Meter

FromAcrel Co., Ltd.

SHARE

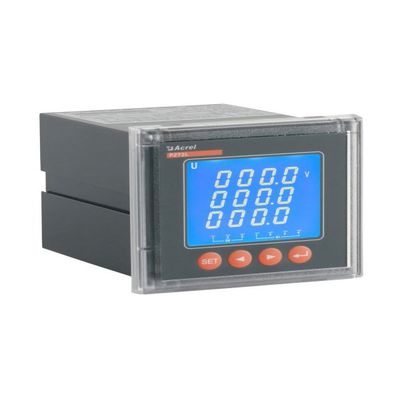

Based on AC sampling technology, PZ series digital panel meter is capable of direct or indirect measurement of electrical quantities including current, voltage, power, electric energy, etc. in three phase grid. It conforms to the standard of Q31/0114000129C017-2016 "PZ Series Programmable AC Intelligent Meter".

Most popular related searches

digital panel meter

energy management system

current meter digitizer

signal converter

Input Collection:

3-phase-3-wire

3-phase-4-wire

Input Frequency:

45-65HZ

Input Voltage:

Rating: AC 100V, 400V

Overload: 1.2 fold rating (continuous); 2 fold rating for 1 second

Power consumption: < 0.2VA

Input Current:

Rating: AC:1A/5A

Overload: 1.2 fold rating (continuous); 10fold rating for 1 second

Power consumption: < 0.2VA

Output Electric energy:

Output mode: 2 channel open-collector photo coupler pulse

Pulse constant: 10000, 40000, 160000 imp/kWh

Display:

LED or LCD display, set multiplying power, alarm, switching indication at will; For 1 channel analog, display related programmable setting

Accuracy class:

Frequency 0.05Hz, reactive electric energy 1 class, others 0.5class

Power supply:

DC100~350V; AV 85~265V; (In order to instrument wiring shall prevail); Power consumption< 5VA

Security:

Equipment withstand voltage= power supply, voltage input circuit 2kVAC; power supply, current circuit 2.5kV/1 min(RMS) Insulation resistance- input, output end to housing >100MQ

This digital panel meter has RS485 communication interface with Modbus RTU protocol, which can convert electrical signal into standard analogue output. Four-channel or two-channel digital input and two-channel digital output can be achieved. According to individual application needs, the transformation ratio, alarm, communication, etc. can be set and controlled through the function keys on the front panel.

PZ series meter is an ideal economic alternative to conventional transducers and measuring meters, widely applied in a variety of control systems, SCADA systems and energy management systems.
