AVE - Model ACB16 -Acrylic Vacuum Chambers for Various Applications

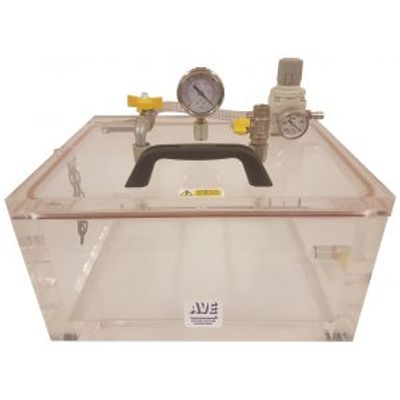

Volume 16 litres. All sides and lid manufactured from clear cast acrylic.  ​​Internal dimensions: 360mm W x 260mm D x 170mm H. Rear hinged lid with Silicon O ring seal and chain restraint.​​​​ Mounted to the lid is a vacuum regulator (optional), a 63mm vacuum indication gauge, air admittance valve, vacuum isolation valve and lifting handle. ​​Drain valve. 2 meters of plastic suction hose.
