Actemium - Model 21P11 -Environment Interface
Actemium’s 21P11 Environment Interface (EI) is the result of years of targeted feedback from our trusted industry partners who require continuous environment monitoring of their production areas to ensure they comply with company and government requirements. FDA 21 CFR Part 11 compliance was a high priority for design team. Actemium’s 21P11 possesses the ability to monitor all aspects of a room by integrating with new and/or existing systems and sensors. The Environment Interface (EI) provides point of entry information, local monitoring with warning and critical alarms, room access control features, maintenance, cleaning, and personnel access logbook features. It can operate independently for standalone applications or be connected to an existing or new environment monitoring system with a wider network of devices via Ethernet, Serial, or WiFi communications.
- Environment monitoring (inputs for new and existing instrumentation)
- Engineered with Audit Trails in mind (parameter logs, personnel entry logs, cleaning logs, maintenance logs, and calibration records)
- Room setpoints automatically changed based on the product being manufactured or activity being performed
- Individual based security access (glove friendly touchscreen and/or RFID)
- Door Access Control
- Wired and wireless communication options to connect to your supervisory system
- Build for a washdown environment
Note: Actemium’s Environment Interface is designed to be part of a facility’s ALCOA+ system when connected with a properly designed Supervisory Control and Data Acquisition system (SCADA).
- Wall surface mount or flush mount options
- Faceplate construction options to accommodate different cleaning chemicals
- Touchscreen interface is daylight readable and glove friendly
- Operating temperature range of -20 to 50 ?c
- NEMA 4X enclosure allows it to be mounted almost anywhere in a facility
- 24VDC or 24VAC
- Ethernet IP (wired or wireless)
- Serial (RS485, Modbus RTU)
Note: If another communication protocol is required, please contact us directly.
The Environment Interface does not require proprietary sensors. Because the EI accepts traditional 4-20 mA signals and 24 VDC digital inputs it is easy to integrate the unit into new or older facilities with existing sensors.
The following lists the maximum number of inputs and output each EI can be supplied with.
- 1 differential pressure sensor input
- 6 analog inputs
- 4 digital inputs
- 2 digital outputs
- High and low frequency RFID reader options
It is very important for operators to know the condition of a regulated room before they enter. The EI’s Screen colours have been selected for intuitive interaction.

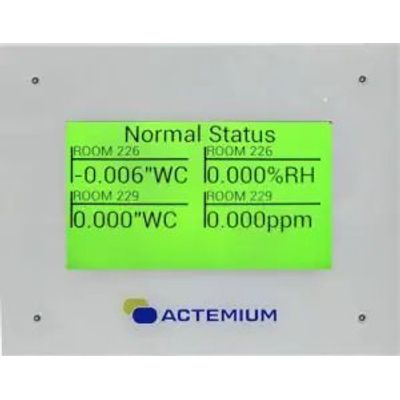

- Green background indicates all conditions are within normal parameters
- Amber background indicates a warning condition exists and should be investigated
- Red flashing background indicates that a critical alarm has been activated
- Blue background indicates the room is in a cleaning or maintenance condition and alarming setpoints are automatically set to a much broader range to not cause nuisance alarms.
All of these modes are completely customizable to the customer’s needs.
