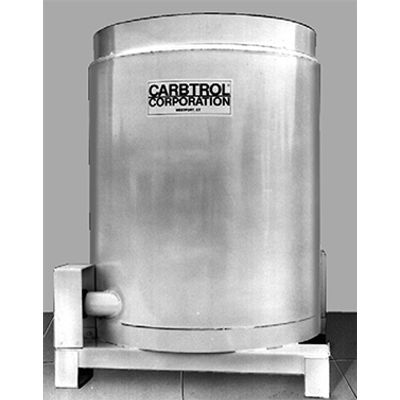

Carbtrol - Model G-4, G-6, G-9 -Activated Carbon Air Purification Adsorber

SHARE

FEATURES: Low pressure drop. Epoxy lined mild steel construction. High activity carbon. Fork lift fittings for easy handling. Slotted inlet distributor. Acceptable for transport of hazardous spent carbon.

Most popular related searches
activated carbon
activated carbon absorption
activated carbon air
activated carbon absorption vessel
activated carbon air purification
air purification adsorber
air purification adsorbent
air purification
active air purification
activated carbon vessel
  • Plastisol (PVC) lining.
  • Interconnecting piping

MODEL G-4

  • CARBON  1,000 lbs.
  • DIMENSIONS  45-1/2" Ø × 64" H
  • SHIPPING WT  1,700 lbs. Dry

MODEL G-6

  • CARBON  1,800 lbs. *
  • DIMENSIONS  45-1/2" Ø × 88" H
  • SHIPPING WT  2,675 lbs. Dry

MODEL G-9

  • CARBON  3,000 lbs. *
  • DIMENSIONS  60" Ø × 93" H
  • SHIPPING WT  4,000 lbs. Dry
