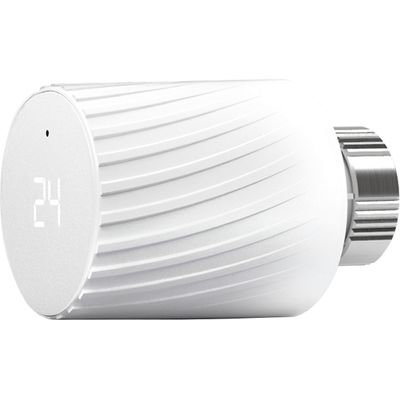

Thermokon - Model SAB07 LRW -Actuator
Application/type : Actuator. Purpose : Room Climate Control. Measured values : temperature, relative humidity. Interface : LoRaWAN® (868 MHz). Functions : heating actuator operation, self-control mode, automatic closing point control, frost protection. Operating functions : setpoint adjustment temperature.
Most popular related searches
temperature transmitter
LoRaWAN
climate monitoring
transmission data
LoRaWAN technology
integrity monitoring
radio transmitter
humidity measurement
temperature monitoring
- Operating elements : rotary button
- Sensor : integrated digital temperature transmitter
- Radio technology : LoRaWAN® (868 MHz)
- Data transmission : bidirectional, optionally configurable, internal antenna
- Operating range temperature (°C) : 0..+60
- Operating ranges temperature (°C) : 0..+60
- Operating range humidity : max. 85% rH non-condensing
- Power supply : battery type AA (2x)
- Enclosure : PC, ABS
- Colour : pure white
- Protection (IP) : IP30, according to EN 60529
- Mounting : screw mounting M30x1,5
- Delivery content : incl. battery type AA (2x)
- Packaging : case packaging
- Device length (mm) : 59
- Device width (mm) : 59
- Device height (mm) : 84
