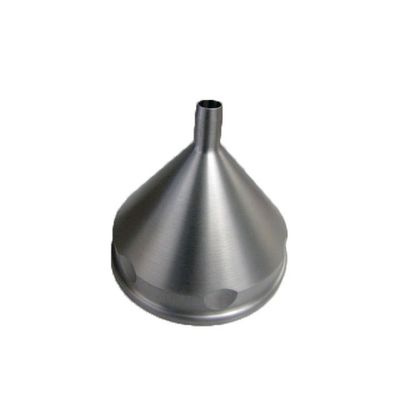

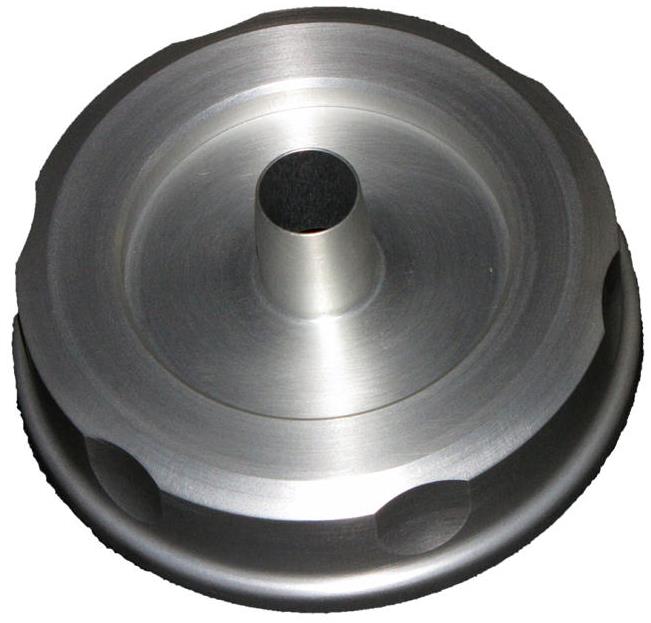

Climet - Model CI-9xA -Adapter Head for Sampling High Pressure Gases
High Pressure Diffuser Adapter head for the CI-90A or CI-95A microbial sampler. Used for sampling high pressure gases. Connects to a Climet CI-302 High Pressure Diffuser.
Climet offers a number of different sample heads depending on individual customer requirements. All products are autoclavable.
Constructed of 316L stainless steel. The head is passivated per QQ-P-35, Rev C, Type VI and is electro polished. The heads provide a surface that is compatible with most commonly used antibacterial cleaning solutions.
Constructed of 6061-T6 aluminum and clear anodized after fabrication. The heads provide a surface that is compatible with most commonly used antibacterial cleaning solutions.
O-Rings used in the remote adapter heads are made of Viton, a material with good chemical and oil resistance, and can be exposed to a temperature range between -15°F to +400°F. Vitron O-Rings have a durometer hardness of A75 and meet SAE J200.
