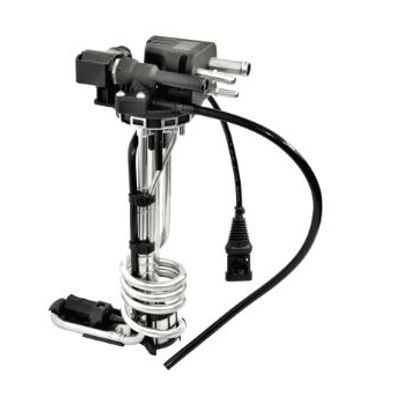

KUS - Model CS8MT -AdBlue Quality Sensor
CS8MT AdBlue quality sensor uses the ultrasonic principle and is applied to the after-treatment systems of well-known trucks at home and abroad for AdBlue concentration detection and AdBlue level measurement. Using electromagnetic induction principle, the output signal has high accuracy, good stability and continuity. It adopts the universal CAN J1939 protocol, and complies with the requirements of EURO IV, V, VI, Bharat Stage, EPA 2010, and China VI - 6.
Most popular related searches
water piping
water pipe
integrity monitoring
level monitoring
electromagnetic induction
selective catalytic reduction system
solenoid valve
liquid filtration
water filtration
water cooling
- Length range: 245 ~ 900mm, can be customizable according to customer requirements
- Installation: toothed ring installation
- Connector: optional
- Output information: CAN signal
- Baud rate:250Kbps (can be customized)
- Level accuracy range: 10 ~ 40mm (special requirements can be customized)
- Working temperature: -40 ~ + 85 ?
- Protection level: IP67
- AdBlue solution suction, return
- Liquid level and temperature detection
- Helix-type water pipe strong heating and thawing AdBlue
- AdBlue filtration
- Water pipe cooling liquid filtration
- Sensor integrated solenoid valve
- Sensor integrated quality sensor (ultrasonic detection)
