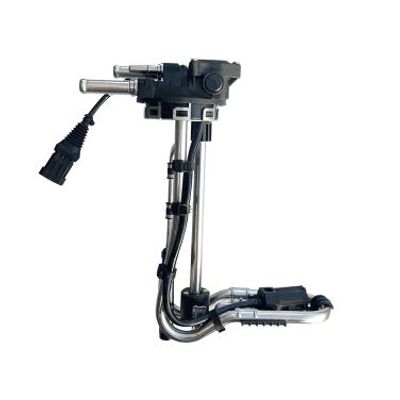

KUSModel DCL8CT -AdBlue Quality Sensor

SHARE

DCL8CT AdBlue quality sensor uses the ultrasonic principle and is applied to the after-treatment systems of well-known trucks at home and abroad for AdBlue concentration detection and AdBlue level measurement. Using electromagnetic induction principle, the output signal has high accuracy, good stability and continuity. It adopts the universal CAN J1939 protocol, and complies with the requirements of EURO IV, V, VI, Bharat Stage, EPA 2010, and China VI - 6.

Most popular related searches
  • Length range:245 ~ 900mm, can be customized according to customer requirements
  • Installation method:Toothed ring installation
  • Connector:Optional
  • Output information:CAN signal
  • Baud rate:250Kbps (can be customized)
  • Level accuracy range:10 ~ 40mm ( can be customized)
  • Working temperature:-40~+85?
  • Protection class:IP67
  1. AdBlue solution suction, return
  2. Detection of concentration, liquid level and temperature
  3. L-shaped water pipe strong heating thawing AdBlue
  4. AdBlue filtration
  5. Water pipe cooling liquid filtration
  6. Sensor integrated quality sensor (ultrasonic detection)
