Deling - Model NW-6200 -Addressable Fire Alarm Control Panel
The fire alarm control panel is an important part of the fire alarm system. It is mainly used to receive, display and transmit fire alarm signals, and has the function of issuing control signals. The main functions of the fire alarm control panel are system power supplying, fire alarm signal receiving, and equipment linkage.

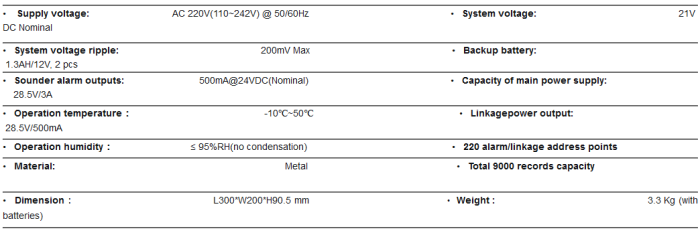

- Product Name Addressable Fire Alarm Control Panel
- Model NW-6200
- Voltage AC 220V(110V~242V) @ 50/60Hz
- Current Sounder alarm outputs: 500mA@24VDC(Nominal)
- Material Metal
- Dimension L300*W200*H90.5 mm
- Weight 3.3 kg (with batteries)
System Power Supplying
The fire alarm control panel can provide a stable power supply for external devices such as smoke detectors. Meanwhile, it can also monitor the working status of external devices and the system itself.
Fire Alarm Signal Receiving
The fire alarm control panel can receive, convert, and process the fire alarm signal output from the detectors, giving sound and light alarms, indicating the specific location and time of the fire alarm, and recording the alarm information.
Equipment Linkage
The fire alarm control panel can activate the fire alarm signal through the fire alarm sending device or activate the automatic fire extinguishing equipment and linkage control equipment through the automatic fire extinguishing control device.
