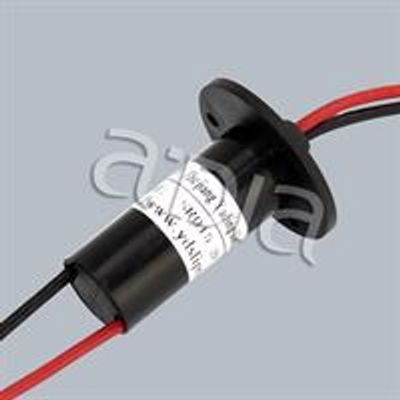

Adia - Model SRC015 -Capsule Slip Ring
Conductive slip rings, applied in slip connection with electricity, and widely referred to as collector rings, rotary joints, rotating electrical interfaces, slip rings, current collectors, coils, steering gears and adaptors, serve as power transmission devices for data, signals and power between two rotating mechanisms. Specially adopted in unlimited continual rotation, they also provide transmission of the power and data between the position point and the rotation point.
It consists elastic materials-electrical brushes, sliding contacts-and conducting rings, insulating materials, binding materials, composite stands, precision bearings, dust covers as well as other auxiliary components. The electrical brushes are made of noble metal with superior insulation function, and are symmetrically connected to grooves of the conductive slip rings on both ends in a “II” shape, thus transmitting signals and current through the elastic stress of the brush and the sliding contact of the groove. As a major component in precise rotating platforms, centrifugal machines and inertial navigation equipments, it is widely adopted in electromechanical devices in security, factory automation, power, finance, instruments, chemical engineering, metallurgy, medical treatment, aviation, military, shipping, transportation, architecture and other sectors.
