Reotemp Instrument

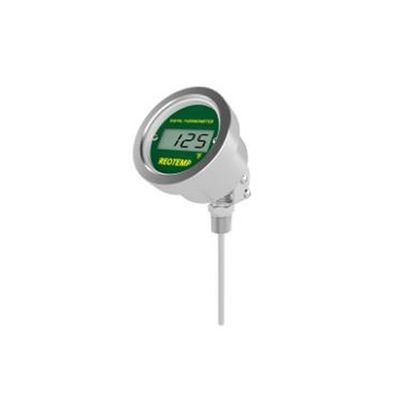

Reotemp - Adjustable Angle Digital Thermometer/Transmitter
The Reotemp Adjustable Angle Digital Thermometer/Transmitter is a durable high accuracy thermometer with digital display. It features an IP67/NEMA 4X enclosure, 5 year battery life and optional transmitter output (Note: 4-20mA models are loop powered 9-36VDC).
Most popular related searches
- High Accuracy 1,000Ω RTD (Class A)
- Water Resistant IP67/NEMA 4X
- 5 Year Battery Life (4-20mA Models are Loop Powered)
- 4-20 mA Output Available (Loop Powered 9-36VDC)
- Low or High Temperature Range Models
- Accuracy : ± ( 0.72 + 0.002 x | t-32 | ) °F,± ( 0.40 + 0.002 x | t | ) °C, where t = temperature. Example: At 32°F accuracy is ± 0.72 °F.
- Sensing Element : RTD, Type Pt1000Ω, Class A
- Temperature Ranges : -58°F to 392°F (-50°C to 200°C) or -328°F to 1112°F (-200°C to 600°C)
- Output (Optional) : 4-20 mA, M12 Connector, Loop Powered 9-35 VDC
- Refresh Rate : 3 Seconds
- Display : 4-digit LCD, 1/2” Height
- Display Resolution : See Table 1
- RFI Effect : 1% or Less Typical
- Temperature Effect :
- Ambient Temperature Range : 32°F to 122°F (0°C to 50°C)
- Storage Temperature Range : -4°F to 158°F (-20°C to 70°C)
- Housing Material : Stainless Steel 316
- Lens : Plastic Polycarbonate (Standard) or Glass
- Probe Material : 304 Stainless Steel
- Weight : 12 oz., Varies by Configuration
- Environmental Protection : NEMA 4X/IP67
- Power : 1 x 3.6V AA Battery (M12 is loop powered 9-36 VDC.)
- Battery Life : 5 Years Minimum in Continuous Mode, (Note: 4-20mA Models are Loop Powered 9-36 VDC, No Battery Option)
- Electronic Display Temperature Limit : If the temperature of the electronics in the display housing exceeds 122°F (50°C), permanent damage to the display will occur. A remote mount is recommended for high or low temperature applications.
