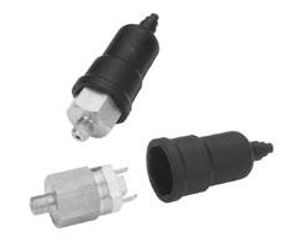

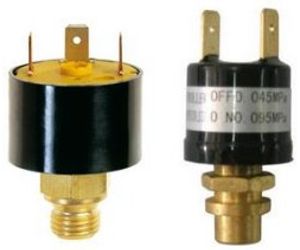

A.YITE - Model GE-206 -Adjustable Pressure Switch
FromZHOU ENSI LTD
The use of the pressure switch on machines which use solenoid pumps for continuous refilling. When the pressure is higher than the pressure setpoint, the pressure switch will switch; when the pressure is lower than the pressure setpoint, the pressure will switch.
Most popular related searches
- Medium: Air or Liquid
- Max Pressure: 1.0Mpa
- Adjustable Range: 1.0bar ~ 10.0bar
- Pressure Setpoint in Factory: 2.0Bar
- Temperature: -5C ~ +60C (If more than 60C, please connect with capillary)
- Connection: 1/8" 1/4" 3/8" 1/2" 3/4" (standard 1/8")
- Work Voltage: N.O 220V/AC N.C 48V/AC/DC
- Max Current: 500mA
- Max Power: N.O 100VA N.C 24VA
- Protect Grade: IP54
- Fluid: water - oil- air - steam or water - air
- Max Pressure: 700PSI(4.8Mpa)
- Working Pressure:: -45~650PSI, -0.30~4.50Mpa
- Rating 0.2/10 bar (Reinforced Diaphragm)
- Fire-Proof Material(Self-Extinguishing)
- Special Threads or Connectors
- Connections Tin Dioxide Treated
- Protection Screw Cover & Calibration Identification
- Seal Against Tampering
