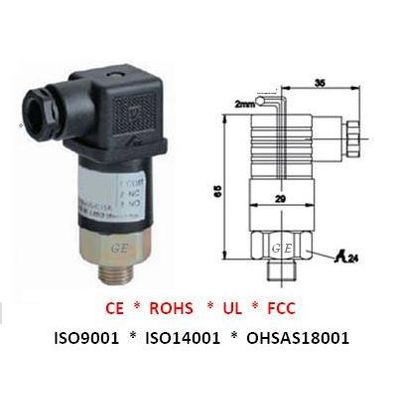

A.YITE - Model GE-208 -Adjustable Pressure Switch | Mechanical Pressure Controller
FromZHOU ENSI LTD
GE-208 adjustable pressure switch is a mechanical controller, the working principle and structure of this adjustable pressure switch is built-in piston connected with precision springs, when pressure changes, the corresponding changes in the spring scale, This adjustable pressure controller could trigger preset mechanical structure and signal switch
The Character of GE-208 Pressure Switch
* Pressure setpoint is adjustable
* Substance could be air water oil
* Micro switch have UL CE CSA certification
* 0.2bar ~ 400bar, big widely measure range
* Compact structure, used for the most diverse requirements.
* DIN connector design , easy to Wiring and open inside to adjust the range .
* High overload pressure, High repeatedly
* Gold-plated and large capacity NC/ NO contact .
* NC/NO or changeover contact for gauge pressure .
The Specification of GE-208 Pressure Controller:
* Pressure Range: 0.2-2.5bar; 0.8-5.0bar; 1-12bar;
5-50bar; 10-100bar; 20-200bar; 50-400bar; other range co
