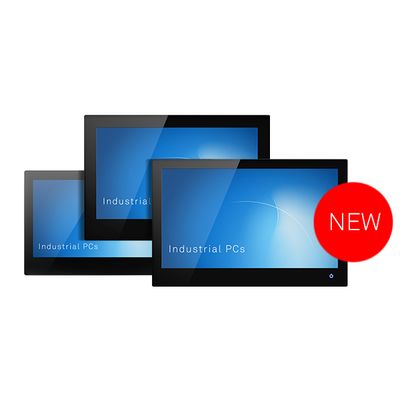

ADS-TEC - Model OPC9000 -Industrial Panel PC

SHARE

The latest generation of ADS-TEC Industrial PCs has been developed from scratch on the basis of our decades of experience and each detail has been optimised. The capacitive touch screen HMIs, which are available in three inch sizes, deliver powerful performance with 8th-generation Intel Celeron and Intel Core processors and do not require a fan. Technology 100% made in Germany.

Most popular related searches
industrial PC
panel PC
industrial panel PC
tunnelling

Strong performance For stringent requirements

  • Latest 8th-generation Intel® Celeron® 4305UE and Intel® Core™ i5-8365UE processors (Whiskey Lake)
  • Memory for demanding applications with up to 32 GB of fast DDR4 RAM
  • Up to 512 GB Flash SSD mass storage, optionally configurable as RAID

Varied display sizes Always the right sight
Three different monitor sizes in widescreen format

  • 15,6“ TFT Full HD display
  • 18,5“ TFT Full HD display
  • 23,8“ TFT Full HD display

Dual power button system Maximum flexibility
The capacitive power button on the front side offers the option of software deactivation.
In addition, the device has a mechanical power button on the reverse side.

Quick installation & easy servicing  Convenient and simple
  • The innovative mounting concept of the OPC9000 series enables easy installation of the device without separate assembly parts
  • Due to the specific shape of the mounting elements, the Panel PC is pressed against the installation wall in a linear manner, which ensures optimum security and even distribution of weight on the installation wall
  • Rear service duct access provides fast access to Flash SSD and CMOS battery

Integrated HDBaseT transmitter module  The additional option for greater distances
The optional integrated HDBaseT transmitter module allows multimedia signals (image, sound, touch control) to be transmitted up to 100 m via a single cable. The ideal solution for remote application environments in combination with industrial monitors from ADS-TEC such as our OPD series or MMD series.

Communication module  Extension for all leading industrial protocols

With the optionally available HILSCHER-netJACK modules, various fieldbus types as well as Real Time Ethernet as master or slave can be integrated into the OPC9000. The integration can be carried out quickly and easily without any tools. This offers enormous flexibility.

Big-LinX® IIoT Client Secure connection for servicing
  • VPN tunnel secured via smartcard (optional software certificate also available)
  • Includes X-Remote for secure remote desktop connection
  • Configurable and secure data push for provision and visualisation of remote maintenance or other big data applications
  • Keep software, firmware and BIOS always up-to-date on your devices
  • Big-LinX provides technicians or service groups a central platform for remote service of any number of device
