Adsorbsia - Arsenic Filters

• Filtration velocity: 15-25 m3/h.m2
• Contact time: 1-3 minutes
• Diameter: 50 cm to 3m
• Filtration area: 0,2 to 7 m2
• Flowrates: 10L/h to 100 m3/h
• Pressure ratings: 4 to10 bar
• Vessel Materials:
• Epoxy-coated steel
• Polyester composite
• Stainless steel (on request)
• Bed depth: 1 meter min.
• Filtration media: Adsorbsia
• Top manhole: 2 1/2 to 6": DN 400
• Accessories: 5-ball or butterfly valves: 5-butterfly valves
• Options: Manometers, degaser, flowmeter
• Control: Automatic or manual backwash, on timer and/or differential pressure
• More on arsenic and water and arsenic removal

• Feed / backwash pump
• Pressure vessel filled with Adsorbsia
• Manual valves
• Manometers

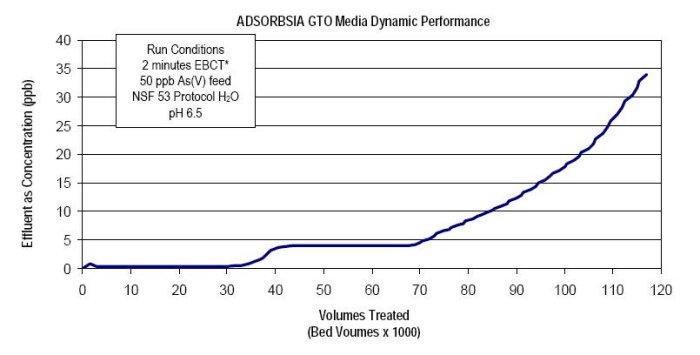

Depending on the feed water arsenic concentration, the bed lifetime last up to 120.000 BV.
