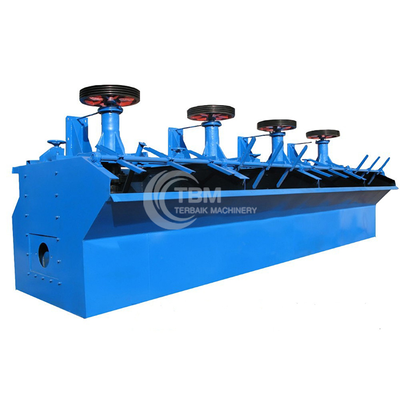

Advanced Flotation Machine for Copper, Tin, Iron, and Silver

With the rapid development of the mining industry, there is a growing demand for sophisticated flotation machines that cater to the diverse requirements of investors. Currently, the market offers a variety of flotation machines, including the agitation impeller flotation machine (seldom used, small capacity), SF flotation machine (larger volume, better flotation effect), and pneumatic flotation machine (aeration and agitation, high capacity). The choice of flotation machine depends heavily on the specific hydrophilicity of the mineral ores, necessitating expert design and customization.

Flotation machines, also known as floatation machines or planktonic concentrators, are essential in mineral ore dressing plants. They efficiently separate valuable non-ferrous metals such as copper, zinc, lead, nickel, and gold from gangue. Their versatility makes them indispensable in mining operations targeting a wide range of mineral ores, including fluorite, talc, iron, and silver.

Selecting the Right Flotation Machine

Ore Characteristics: Choose the appropriate flotation machine based on the nature of the ore (washability, feed particle size, density, grade, pulp pH, etc.) and the scale of the flotation plant.

Concentration Operation: To improve the ore concentrate grade, the flotation foam layer should be thin to separate the gangue effectively. Using a flotation machine with a large aeration volume is not appropriate for this operation. Differences exist between froth flotation machines used for concentration, roughing, and scavenging.

Professional Guidance: Henan terbaik machinery engineer team is available to assist with flotation machine selection, price inquiries, and flowsheet design.

Key Features of the Flotation Machine

• High Air-Absorption Capacity and Energy Efficiency: These machines are designed to maximize air absorption while minimizing energy consumption.
• Optimized Structure and Performance: The flotation machines boast an advanced design that ensures excellent performance.
• Efficient Mineral Slurry Circulation: The machines ensure a reasonable and effective circulation of mineral slurry.
• Automatic Control and Easy Adjustment: These machines are equipped with automatic control systems, making them easy to adjust and operate.

The flotation machine operates on a principle of centrifugal force and negative pressure zones. As the impeller rotates, the slurry in the upper and lower impeller chambers generates centrifugal force. This force, combined with the action of the upper and lower blades, twists the slurry to the periphery, creating negative pressure zones. The slurry from the upper part of the cover plate is drawn into the upper impeller cavity through circulation holes, facilitating slurry circulation.

Simultaneously, the lower blade draws out the surrounding slurry, causing the lower slurry to replenish the center, forming a lower circulation. Air is drawn into the upper impeller chamber via a suction pipe and central cylinder, mixing with the slurry to produce fine bubbles. These bubbles disperse uniformly in the groove, forming mineralized bubbles that float to the foam layer. The mineralized bubbles are then scraped off by a scraper, resulting in a foam product.
