Fiberscope SIGMA - Model HD-LR -Advanced Long Range Pipe Crawler

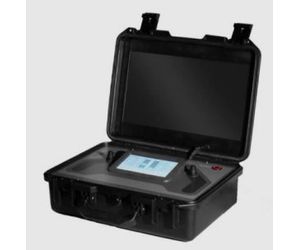

• Daylight Readable 17.3" Color LCD Monitor
• Precise, Dual Joysticks Controlled Operation
• Built-in Telemetry Computer with Telescan Reporting Software
• 256Gb Internal Memory
• Pipe Plotting and Defects Measurement
• IP67 Waterproof

Full Specifications

• Construction: All electronics and control systems are housed inside a durable and portable PELICAN type case.
• Monitor: Main: 17.3" touch screen, Hi-Brightness (1000 cd/m2), Control: 7" touch screen, Hi
• Brightness (1000 cd/m2)
• Navigation and Control: Dual joysticks, Touch screen menu.
• Built-in Memory: 256Gb
• Built-in Software: TELESCAN
• Footage (Meter) Counter: Yes
• Wireless remote support: Yes
• Ingress Protection: IP67, with closed cover
• Minimum operating temperature: - 20 0
• Maximum operating temperature: + 40 0
• Dimensions: 470x357x176 mm
• Weight: 11 kg

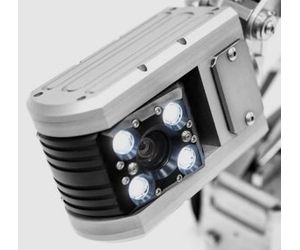

• Full HD 1080p Pan and Tilt Camera, with 120x Total Zoom
• Manual or Auto Focus, Range from 10mm - infinity
• Electronic Raising of the Camera
• Full HD Rear-view Camera with LED lights
• Laser Measurement, Optical Vibration Compensation
• High Powered Built-in LEDs for Excellent Illumination (4000 LM)
• 10x true optical zoom
• Endless Panning of the Camera Head and Tilt Angles

Full Specifications

• Construction: Corrosion-proof with waterproof rear connector.
• Image Sensor: Tamron Full HDTV CMOS (Japan) with Optical Vibration Compensation
• Resolution: 1080p (Full HD)
• Sensitivity: 0.5 lux.
• Illumination: Built-in Ultra-Bright LEDs 4000LM (Optional auxiliary light available), Dimmable
• Focal Distance: 10mm - ∞
• Field of View: 62 degree
• Rotation: Endless Panning/Tilting
• Zoom: 120x (10x Optical, 12x Digital)
• Manual / Auto Focus: Yes
• Laser Measurement: Yes
• Camera Position Sensor: Yes
• Camera Internal Pressure Sensor: Yes
• Image Sensor Protection: Scratch Proof Sapphire Crystal Lens
• Waterproof: IP68, 0.1bar (1m in freshwater)
• Rear view camera: Full HD, Built-in

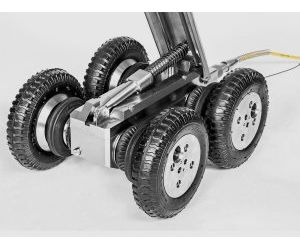

• Steerable, 4x4 Wheels, with Ultra-Powerful Dual 110 watt Motors
• Built-in Pressure Sensors, Inclinometer, Gyroscope, Pitch and Roll Sensors
• Electronically Controlled Hydraulic Lift System
• Corrosion-resistant, All Stainless Steel Tractor Body
• No Exposed Cables - All Wiring is Laid in Hidden Channels
• Convenient Mounting of Larger Diameter Wheels Over Smaller Wheels with Track Increase

Full Specifications

• Body Construction: Stainless Steel
• Motor: Two, 110 Watt each FAULHABER motors
• Drive: Four-wheel drive. Steerable. Variable speed
• Cruise control: Yes
• Roll sensor: Yes
• Camera Raiser: up to 350mm, Hydraulic, Electronically adjusted
• Dimensions: Length 360mm (14.17"), Width 120mm (4.72"), Height (without camera raiser)100mm (3.94")

Wheels

• 93mm wheel set for 200mm (8") diameter pipes and above - standard
• 125mm wheel set for 300mm (12") diameter pipes and above - optional
• 210mm pneumatic wheel set for 350mm (14") diameter pipes and up to 3m - optional
• 93mm abrasive weel set for plastic and ceramic pipes - optional
• Built-in Sensors: Inclinometer (to measure angles of slope), Gyrometer (to measure angles of pipe turns), Internal Pressure monitor
• Waterproof: IP 68
• Weight: 26kg minimal crawler + 93mm wheels only
• 512Hz Transmitter (Sonde): Yes, Optional

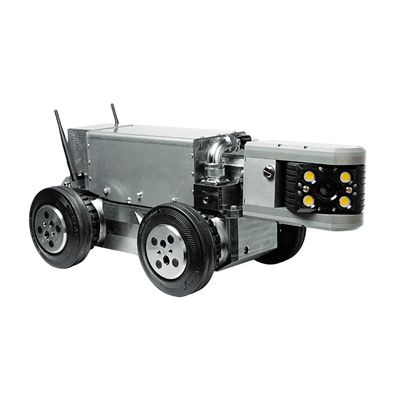

• For Pipes 16" and Over Filled with Water
• Self-stabilizing - Returns to the Vertical Position when Tipped Over
• Bottom Protection with Stainless Steel Plates
• Protection of the Body on the Sides and Top with Stainless Steel Frame
• Junction Box Filled with Dry Nitrogen

Full Specifications

• Body Construction: Stainless Steel
• Motor: Two, 110 Watt each FAULHABER motors
• Drive: Four-wheel drive. Steerable. Variable speed
• Cruise control: Yes
• Roll sensor: Yes
• Camera Raiser: up to 350mm, Hydraulic, Electronically adjusted
• Dimensions: Length 360mm (14.17"), Width 120mm (4.72"), Height (without camera raiser)100mm (3.94")

Wheels

• 93mm wheel set for 200mm (8") diameter pipes and above - standard
• 125mm wheel set for 300mm (12") diameter pipes and above - optional
• 210mm pneumatic wheel set for 350mm (14") diameter pipes and up to 3m - optional
• 93mm abrasive weel set for plastic and ceramic pipes - optional
• Built-in Sensors: Inclinometer (to measure angles of slope), Gyrometer (to measure angles of pipe turns), Internal Pressure monitor
• Waterproof: IP 68
• Weight: 26kg minimal crawler + 93mm wheels only
• 512Hz Transmitter (Sonde): Yes, Optional

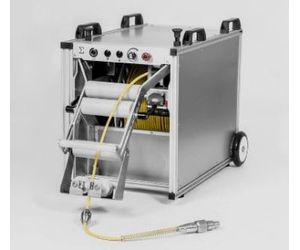

Motorized

• Cable Length up to 500 meters (1,640 ft)
• Cable`s Tensile Strength up to 400kg, so It`s Not Easily Damaged or Broken
• Aramid Reinforced G8 Cable
• Synchronization of Cable Reel Winding and Unwinding with the Robot Movement
• Adjustable Pitch and Speed of Cable Winding
• Rolling Ring Drive on a Smooth Shaft to Extend the Life of the Cable
