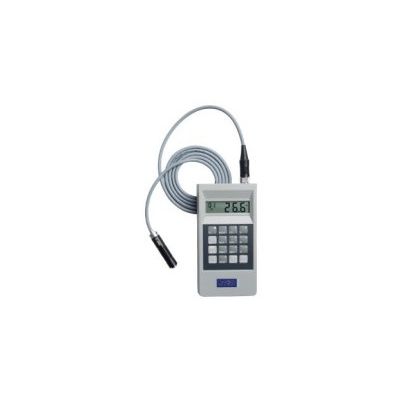

Hitachi High-Tech - Model CMI243 -Advanced Metallic Coating Measurement for Electroplating and Metal

With the CMI243 using the ECP-m probe it is possible to accurately measure metallic coatings over ferrous substrates - even on small, odd-shaped or rough surfaces.

This gauge is ideal for use on fasteners and transportation components, featuring user-friendly controls and performance that is comparable to X-ray fluorescence (XRF) instruments.

For added value, the CMI243 can be expanded with a magnetic induction probe for measuring paint and other coatings on magnetic substrates.

• Battery operated.
• Eddy current technology.
• Reliable and accurate.

PHASE-SENSITIVE EDDY CURRENT TECHNOLOGY
More reliable than conventional eddy current and magnetic induction gauges, especially tor small parts or parts with complex geometry. Accuracy within ±1 % (with reference to standards) and precision within 0.3%.

ADVANCED ECP-m PROBE
Our ECP-m probe was designed speciticalfy tor difficult metallic coating applications. This probe can measure metallic coatings, such as zinc, nickel, copper, chrome or cadmium, on ferrous substrates. Its tip provides easy measurement of small, odd-shaped or rough components.

PACKAGE CONSISTS OF:

• ECP-m Probe with guide.
• Zinc calibration standards.
• Optional: SMP-1 (magnetic probe) can be purchased separate^.
• Accuracy: ±1 % with respect to reference standards.
• Precision: 0.3%.
• Resolution: 0.01 mils (0.1 Mm).
• Eddy Current: Conforms to methods DIN 50984, BS5411 Part 3. ISO 2360, ISO 21968 (DRAFT), ASTM B499, and ASTM E376.
• Memory Capacity: 26,503 readings.
• Dimensions: in: 5 7/8" (U x 3 1/8" |W) x 1 3/16" (D). cm: 14.9 (Ux 7.94 (W)x 3.02(D).
• Weight: 9 oz. (0.26 kg) including baltery.
• Units: Automatic conversion between imperial and metric with a keystroke.
• Display: Three tfcgit LCD dsplay, 11T (1.27 cm) character height.
• Battery: 9 V Akaline (65 hrs).
