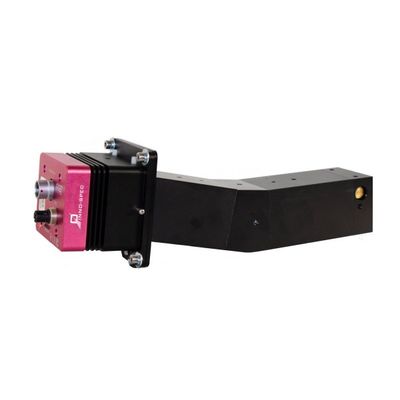

INNO-SPEC - Model RedEye 1.7 OEM -Advanced NIR Sensor OEM Camera
Introducing the RedEye 1.7 OEM, the functional core of our standard RedEye system. It comprises the optics, an area scan NIR sensor and readout electronics. This system offers a solution at a reduced price for integrators that can provide their own temperature management, protective case and data correction functions.
Developed through a decade of experience in delivering industrial applications, the RedEye camera family incorporates sophisticated optical design, advanced transmission grating technology, and a fast NIR detector, making it suitable for use in even the most demanding industrial applications.
Our innovative approach to material characterization provides comprehensive analytical data for laboratory or manufacturing processes, combining chemical and spatial information at the same time.
Application areas:
- Recycling industry
- Moisture content determination
- Food and harvest products
- Mining
- Pharmaceutical industry
- Large pixel size for low-signal detection
- ROI (selectable region of interest) & Multi-ROI
- High frame rate > 340 fps
- GigE Vision standard interface
- Robust design
Spectograph
- Spectral range typ. : typ. 950 to 1700 nm
- Dispersion : 3.1 nm/px
- Spectral resolution : 9 nm (with 80 µm slit)
- Spatial resolution : rms spot radius < 35 µm
- Smile : < 60 µm
- Keystone : < 50 µm
- F/# : 2.6
- Standard slit width : 80 µm (30, 50 & 100 µm available
Electronics
- Sensor : InGaAs
- Pixels in full frame : 320×256 (spatial x spectral)
- Pixel size : 30 µm x 30 µm
- Bit depth : 13 bit
- Frame rate : 330 fps (full frame) 4200 fps (4 bands)
- Data interface : Gigabit Ethernet (GigE Vision standard)
- Power supply : 12V DC
- Cooling : 1-Stage TEC
Operation Conditions
- Temperature (operating) : -5ºC to +40ºC
- Temperature (storage) : -10ºC to +45ºC
Mechanics
- Dimensions l x w x h : 275 mm x 81 mm x 87 mm
- Weight : 1.7 kg
- Lens mount : standard C-mount
