Fiberscope SIGMA - Model 200 HD -Advanced Pipe Crawler for Refined Visual Inspections
FromFIBERSCOPE.net
The SIGMA 200 HD advanced pipe crawler is an extremely reliable, expertly designed, steerable pipe inspection robot that is loaded with great features. These units are one of the most advanced and affordable sewer robots which can be used to inspect stormwater lines, sewer drainage and construction areas, duct work, pipe/gas lines, and industrial sites. This is perfectly suited to use in straight runs from 8" up to full inspections in 9.8 ft diameters, and lengths up to 3,280 ft. thanks to their modular design.
Most popular related searches
pipe crawler
pan and tilt camera
pan-tilt-zoom camera
pressure sensor
pipe robot
pipe inspection robot
crawler tractor
sewer robot
pipe crawler robot
pipe lining industry
The SIGMA 200 HD advanced pipe crawler is an extremely reliable, expertly designed, steerable sewer robot that is loaded with great features. These units are one of the most advanced and affordable pipe crawlers that can be used to inspect stormwater lines, sewer drainage and construction areas, duct work, pipe/gas lines, and industrial sites. This is perfectly suited to use in areas from 200mm (8") up to 3 meters (9.8 ft), and up to lengths of 1,000 meter (3,280 ft) thanks to its design.

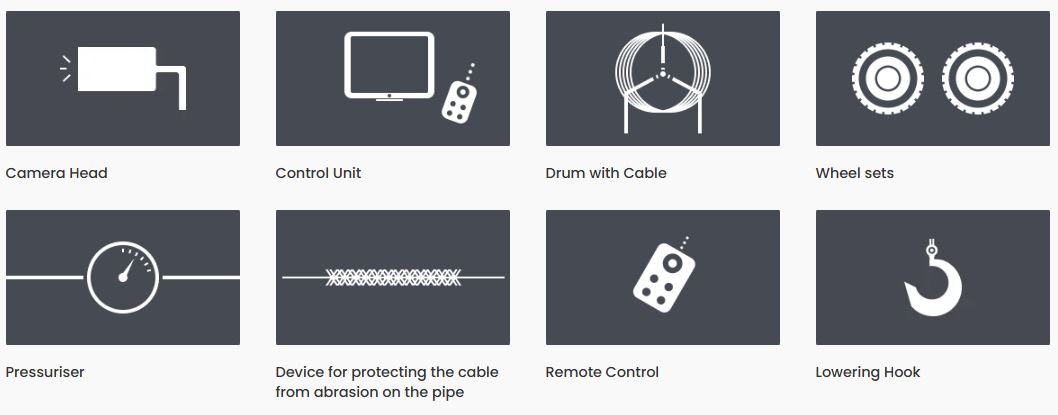

These pipe crawlers come in the following configuration: pipe crawler tractor, a motorized reel, extra sets of wheels, LED lights, electronic raising of the camera head, and a control box.
What makes this system so unique and advanced is:
All SIGMA 200 HD CCTV Crawler Cameras have the option to add additional LED lighting, a sonde for location, and additional wheel sets for larger diameter inspections. These crawlers are also modular and can be customized for different applications and inspection areas as you need.

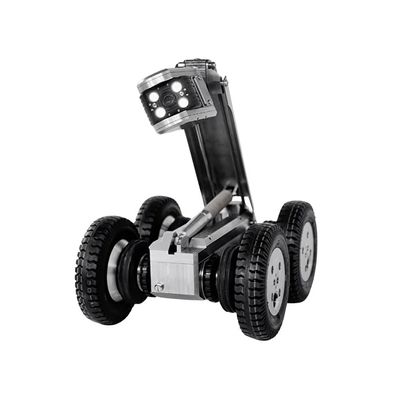

The SIGMA 200 HD features a 200mm (7.9") robot, with an electronically controlled lift system to raise the camera head up to 330mm (13"), a built-in full HD rear view camera with LED lights, and wires that are protected by hard electrical conduits running inside the drive unit, offering top of the line protection for tough inspection areas.
With respect to the cable reel, the SIGMA HD pipe crawler is available with our advanced motorized cable reel, which uses a rolling ring drive on a smooth shaft to extend the life of the cable laying mechanism and built-in wheels to easily maneuver the motorized reel around a variety of job sites. The motorized cable reel has optional cable lengths up to 1,000 meters (3,280ft).
Note: SIGMA HD Pipe Crawler is a specially ordered product. Conditions apply. Call for details.
These pipe crawlers come in the following configuration: pipe crawler tractor, a motorized reel, extra sets of wheels, LED lights, electronic raising of the camera head, and a control box.
What makes this system so unique and advanced is:
- Image stabilization built into the Full HD pan and tilt camera head
- Powerful 4x4 drive system specially designed with two 120W motors
- Endless panning of the camera head and tilt angles
- Electronic raising of the camera head
- Laser-measuring diodes to measure defects and the diameter of pipes
- Pressure sensors, inclinometer, gyroscope, pitch and roll sensors
- Advanced motorized reel with rolling ring drive on a smooth shaft
- 17" color LCD touchscreen monitor (largest available on a mobile system)
- Additional 10" touch screen monitor with a built-in computer, with Telescan software
- Ability to profile and plot the pipeline and prepare a report
All SIGMA 200 HD CCTV Crawler Cameras have the option to add additional LED lighting, a sonde for location, and additional wheel sets for larger diameter inspections. These crawlers are also modular and can be customized for different applications and inspection areas as you need.
The SIGMA 200 HD features a 200mm (7.9") robot, with an electronically controlled lift system to raise the camera head up to 330mm (13"), a built-in full HD rear view camera with LED lights, and wires that are protected by hard electrical conduits running inside the drive unit, offering top of the line protection for tough inspection areas.
With respect to the cable reel, the SIGMA HD pipe crawler is available with our advanced motorized cable reel, which uses a rolling ring drive on a smooth shaft to extend the life of the cable laying mechanism and built-in wheels to easily maneuver the motorized reel around a variety of job sites. The motorized cable reel has optional cable lengths up to 1,000 meters (3,280ft).
Note: SIGMA HD Pipe Crawler is a specially ordered product. Conditions apply. Call for details.
- 8"-120" pipes
- Up to 3,280ft. (1,000m)
- Fine detail detection in pipe
- Front, sideways, backwards
- Integrated 17" Color Monitor
- Dual Joysticks Controlled Operation
- Built-in Telemetry Computer with Telescan Reporting Software
- 256Gb Internal Memory
- Pipe Plotting and Defects Measurement
- IP67 Waterproof*
Full Specifications
- Construction: All Electronics and Control Systems are Housed Inside a Portable PELICAN-type Case.
- Display Monitor: 17.3" Touch Screen, Hi-Brightness (1000 cd/m2)
- Control Monitor: 10" Touch Screen, Hi-Brightness (1000 cd/m2)
- Navigation and Control: Dual Joysticks, Touch Screen Menu.
- Built-in Memory: 256Gb
- Built-in Software: TELESCAN
- Footage (Meter) Counter: Yes
- Wireless Remote Support: Yes
- Minimum operating temperature: -0°?
- Maximum operating temperature: + 60°?
- *Ingress Protection: IP67, with Closed Cover

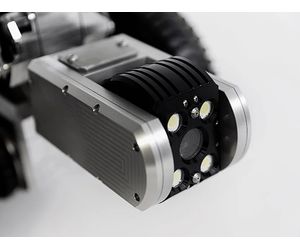

- Full HD 1080p Pan and Tilt Camera, with 120x Total Zoom
- Manual or Auto Focus, Range from 10mm - infinity
- Electronic Raising of the Camera
- Full HD Rear-View Camera with LED lights
- Laser Measurement, Image Stabilization
- High Powered Built-in LEDs for Excellent Illumination (4000 LM)
- 10x True Optical Zoom
- Endless Panning of the Camera Head and Tilt Angles
Full Specifications
- Construction: Corrosion-Proof with Waterproof Rear Connector.
- Image Sensor: Color Full HD
- Resolution: 1080p (Full HD)
- Sensitivity: 0.5 lux.
- Illumination: Built-in Ultra-Bright LEDs 4000LM
- Focal Distance: 10mm - ∞
- Field of View: 62 degrees
- Rotation: Endless Panning/Tilting
- Zoom: 120x (10x Optical, 12x Digital)
- Manual / Auto Focus: Yes
- Laser Measurement: Yes
- Camera Position Sensor: Yes
- Camera Internal Pressure Sensor: Yes
- Image Sensor Protection: Scratch Proof Sapphire Crystal Lens
- Waterproof: IP68
- Rearview camera: Full HD, Built-in

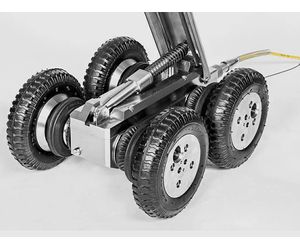

- Steerable, 4x4 Wheels with Powerful Dual 120 Watt Motors
- Built-in Pressure Sensors, Inclinometer, Gyrometer, Pitch and Roll Sensors
- Electronically Controlled Lift System
- Corrosion-Resistant, All Stainless Steel Tractor Body
- No Exposed Cables - All Wiring is Laid in Hidden Channels
- Convenient Mounting of Larger Diameter Wheels Over Smaller Wheels with Track Increase
Full Specifications
- Body Construction: Stainless Steel
- Motor: Two, 400 watt HABER motors
- Drive: Four-Wheel drive. Steerable. Variable speed
- Cruise Control: Yes
- Roll Sensor: Yes
- Camera Raiser: up to 330mm, Electro-Mechanical
- Operating Temperature: - 40°C to +60°C (-40F to 140F)
Wheels
- 93mm wheelset for 200mm (8") diameter pipes and above
- 125mm wheelset for 300mm (12") diameter pipes and above
- 210mm pneumatic wheelset for 350mm (14") diameter pipes and up to 3m - optional
- 93mm abrasive wheel set for plastic and ceramic pipes
- Built-in Sensors: Inclinometer (to measure angles of slope), Gyrometer (to measure angles of pipe turns), Internal Pressure monitor
- Waterproof: IP68
- 512Hz Transmitter (Sonde): Yes, Optional
- Cable Length up to 1,000 meters (3,280 ft)
- Cable`s Tensile Strength up to 2,000N, so It`s Not Easily Damaged or Broken
- Aramid Reinforced G6 Cable
- Synchronization of Cable Reel Winding and Unwinding with the Robot Movement
- Adjustable Pitch and Speed of Cable Winding
- Rolling Ring Drive on a Smooth Shaft to Extend the Life of the Cable
Full Specifications
- Tether: Kevlar/Aramid 6mm Reinforced Cable with Polytherane Coating
- Wet Cable End: Stainless Steel with Strain Relief
- Cable Diameter: 7.5mm (0.29")
- Tether Strength: 2000N (max)
- Working Length: up to 1,000m (3,280ft)
- Reel Construction: Motorized Automatic Reel System
- Built-in Meter Counter: For Distance Measurement Display
- Operating Temperature: - 40°C to +60°C (-40F to 104F)
