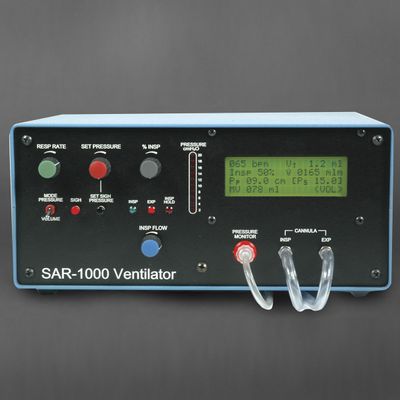

E-Z Systems - Model EZ-SAR-1000 -Advanced Volume-Pressure Ventilator
FromE-Z Systems Inc.
Operates as either a volume or pressure-cycled ventilator. Wide tidal volume and rate range. User-friendly set-up and operation. Accommodates mice up to guinea pigs. Direct display of Tidal Volume and all parameters. Remote control via USB port. Multi-animal set-up available. Safe for use with oxygen and anesthetic gases.
Most popular related searches
- Respiratory rate range: 5 – 200 breaths/min
- Tidal volume range: 0.2 – 35 ml
- Inspiration/Expiration range (%Insp): 10 – 90%
- Inspiratory flow rate range: 100 – 1000 ml/min
- Pressure control range: 0 – 50.0 cmH2O
- Internal air pump capacity: 3 LPM @ 5psi (0.34 bar)
- Analog pressure output voltage: 50 mV/cmH2O
- Logic Sync Out voltage: 5 V (TTL)
- Trigger In voltage: 5V (TTL)
- Remote-control interface: USB
- Front panel ports: Luer female
- Rear panel ports: 0.15″ flex tubing barb (4mm)
- Power requirements (supplied with main cord): 120/240 VAC, 50VA
- Dimensions: 9.00″L x 9.00″W x 4.00″H
