AEG Identifikationssysteme GmbH

AEGGlass Transponder

SHARE

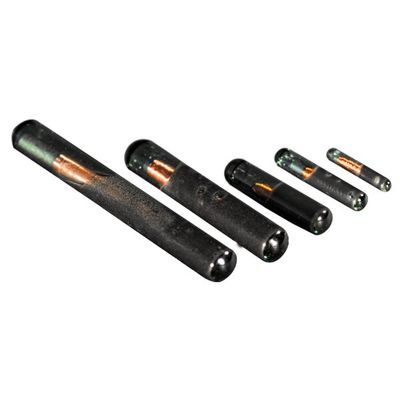

The glass tag is a tough writable transponder designed for industrial environment. It is especially suited for applications where small dimensions are required. Typical applications are identification f boxes, containers, pallets or tools. It also find its applications in identification of textiles or as proof of ownership of valuable itmes, etc.

Most popular related searches
  • ELECTRICAL CHARACTERISTICS
    • reading system ASK, PSK, read only, read/write
    • operational frequency 125 Khz, 128 kHz, 134.2 kHz
    • memory size chip dependent
    • IC all available chips
  • ENVIRONMENT
    • storage temperature -40°C up to +85°C
    • operating temperature -25°C up to +85°C
    • housing protection IP 68
    • schock & vibration IEC 68-2-6 / 29
  • DIMENSIONS
    • Weight 0.03 g | 0.09 g | 0.1 g | 0.7 g | 1 g
    • diameter 1.41 mm, 2.12 mm, 3 mm, 3.85 mm
    • Length 8.5mm | 12mm | 13.5mm | 23mm | 32mm
    • Material Biocompatible glass
  • USAGE
    • Industry & Logistics | Service & Inventory
