Aeron EVO2Uncooled LWIR Thermal Fixed and Zoom Lens

SHARE

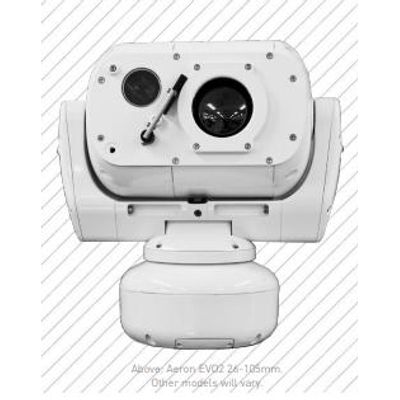

The EVO2 range utilises the very latest in both thermal core and lens technology, providing advanced surveillance capabilities in the most extreme conditions. Available with either zoom or fixed FoV lenses, the Aeron EVO2 range also benefits from a choice of two thermal sensor resolutions; 640 x 512 (12µm) and XGA 1024 x 768 (12µm). The Aeron EVO2 is an accurate, rugged, continuous rotation dual sensor PTZ camera utilising an uncooled LWIR thermal sensor with a range of fixed lenses (up to 100mm), zoom lenses (up to 150mm), and a HD visible sensor. The camera sensors are housed within the Aeron`s rugged enclosure, which also provides fast and accurate camera positioning. Tested to an IP67 level of environmental protection and hard anodised, the Aeron can be used in the most harsh and challenging applications such as maritime, border security and vehicle mount installations.

Most popular related searches
  • Thermal detection* ranges up to 4.6km (human) and 14.3km (vehicle)
  • Uncooled LWIR thermal sensors:
    • Fixed lens options up to 100mm
    • Zoom lens options up to 25-150mm
  • Range of resolutions up to 1024 x 768 (XGA)
  • Pixel pitch down to 12μm (improves range by up to 20%)
  • Push autofocus as standard on selected thermal zoom lenses
  • 30x zoom HD visible sensor with a wiper as standard
  • 360° continuous rotation with pan and tilt speeds up to 160° per second
  • High level of camera positioning accuracy: 0.01°
  • Absolute feedback, virtually zero backlash with automatic self-position correction
  • Compact and ruggedised for extreme and marine environments
  • IP67 rating
  • Mounting options include inverted, upright or inclined
  • Suitable for mobile and vehicle mounted applications
