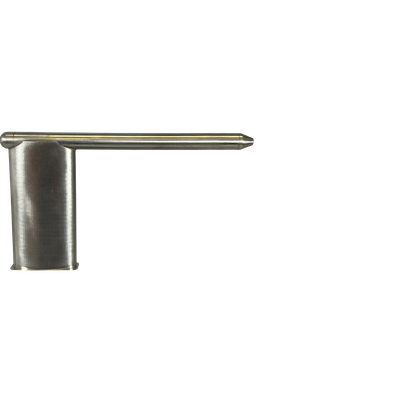

AeroprobePitot/Pitot-Static Probe

SHARE

Aeroprobe specializes in producing Drained Pitot/Pitot-Static Probes designed to enhance the operational capabilities of uncrewed platforms in adverse weather conditions. These probes are fundamental in flight applications, effectively measuring total and static pressures to determine key metrics like airspeed and altitude. Adaptable for various configurations, they can be straight for boom mounting or incorporate a strut for fuselage attachment, making them highly versatile for different types of aircraft. Aside from uncrewed systems and aviation, these probes are instrumental in wind tunnel facilities where they are used to assess wind conditions due to the predictable angle of airflow. For more advanced air data collection, Aeroprobe also offers Multi-function Air Data Probes, extending measurement capabilities to encompass angles of attack and sideslip, thus providing complete and precise solutions for comprehensive performance tracking.

Most popular related searches
  • Probes offered with or without a static ring
  • Designed to meet AS8006 performance standard
  • Drained tip designed to meet AS5562 rain standard
  • Optional safety feature: PT100 RTD to monitor internal probe temperature
  • Low weight (as low as 50 g unheated and 100 g heated)
  • Configurable for specific platforms & envelopes
  • Two tip diameters – 9.5mm (standard) / 7.9mm (optional)
  • Straight, L-Shaped, or Strut Mounted Designs
  • For use up to Mach = 0.85 (performance testing available)
  • Compatible with Aeroprobe’s Micro Air Data Computer (µADC) or connected directly to your existing hardware with pitot and static ports
  • Standard heater options at 12V/18W, 15V/23W, or 28V/42W for anti-icing capability – other higher power heaters options possible
  • Anti-icing heater
  • Choice of pneumatic connector
  • Rugged brazed stainless steel construction
