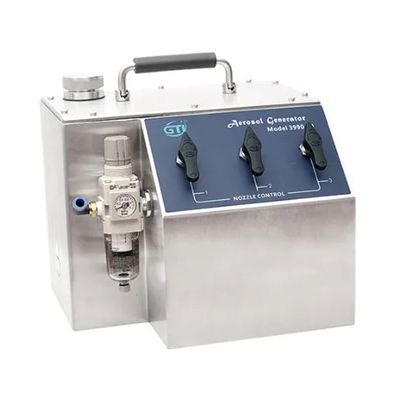

GTI - Model 3990-01 -Aerosol Generator

The Model 3990-01 is a portable compact aerosol generator, which attaching a source of clean, dry, compressed air into filter/regulator air inlet.

This aerosol generator providing a wide range of aerosol concentrations, it’s recommended for testing systems with air-flows of 8,100 cfm and lower. It is ideal for workstations, small or portable clean-rooms, bio-safety cabinets, ceiling modules, or HEPA filter units in installation where an adequate supply of clean, compressed air is readily available.

The generator combining with aerosol concentration tester (Photometer or Particle Counter) are used to integrity test or locate leaks in high efficiency air filtration systems by comparing the aerosol concentration between upstream and downstream of the test system.

•  Bio-safety cabinets, ceiling modules, small or portable clean-rooms, small HEPA filter units

•  HEPA filter manufacturers

•  Leak testing when filter installation

•  Other applications for aerosol generator

• Only a supply of clean, compressed air requested for working. Power supply is not required
• Three regulator valves for adjusting and control the aerosol concentration
• Rugged stainless-steel constriction, comp-active and potable design, more strengthen,         wouldn’t out of shape under over-pressure
• 3”- sanitary outlet flange as adapter kit
