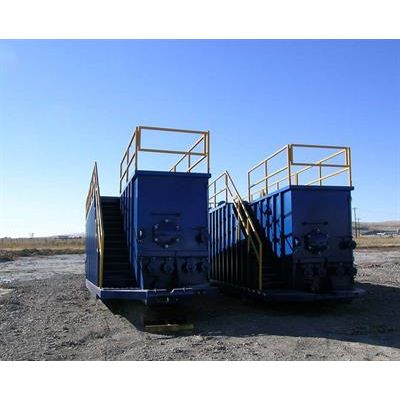

AFC - Frac Tanks
MJK Custom Fabrication’s unique design and production capabilities allows you to purchase a bigger, better smooth wall tank for nearly the same price as our competitor’s economy level corrugated “rod- less” tank. The standard features include a front stairway, 4” drains front and rear, a rounded bottom floor for easy drainage, level gauge, and a chemical resistant lining.
-
Most popular related searches
Standard Specs:
- 12’ diameter by 20’ tall
- Welds AWS D1.1 certified
- All tank seams welded both sides
- Sloped roof with 4” half coupling in center of roof
- 3/16” steel shell and deck
- Inspection opening mounted in roof
- API standard cleanout (24” X 36”) lower side of tank
- 1/4” steel floor
- Standard API fittings and locations
- AFC “Sweet” float gauge
Options:
- Skid
- Full skid
- 3/8' steel lifting lugs
- Extra fittings
- Frangible roof
- Reinforcement rings for fittings
- Sloped reinforced floor
- High profile skid
- Sour float gauge
- Full saddle skids
Applications
-
Liquid Storage Tanks for Oilfield
Tanks used in this field are typically referred to as ‘frac’ tanks, the 500 barrel Frac Master being the industry benchmark. ‘Frac’ is an abbreviation for fractionation, a term that refers to an actions which occur when bringing a new well online or reworking an existing well to stimulate existing production.
