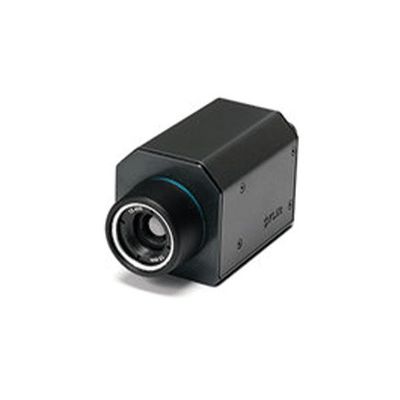

Viper - Model FLIR Compact A-series - FLIR A65 -Affordable and Compact FLIR Cameras

• IR resolution: 640 x 512 pixels
• Spatial resolution (IFOV): 2.27 mrad
• Field of view (FOV) options: 12°, 25°, 45°, 90°
• Image frequency: 7.5 Hz / 30Hz
• Object temperature range: -25°C to +135°C (-13 to 275°F) / -40°C to +550°C (-40°F to 1022°F)
• Thermal sensitivity/NETD: < 0.05°C @ +30°C (+86°F) / 50 mK
• Accuracy: Accuracy ±5°C (±9°F) or ±5% of reading
• Ethernet type: Gigabit Ethernet
• Power: PoE
• Operating temperature range: 15°C to +50°C (+5°F to +122°F)

Choice of image quality
The FLIR A65 produces crisp thermal images with 640 x 512 pixels. Users that do not need this high image quality for their application can opt for the FLIR A35, which produces thermal images of 320 x 256 pixels. The FLIR Ax5-Series makes temperature differences as small as 50 mk clearly visible.

GigE Vision™ standard compatibility
GigE Vision is a camera interface standard developed using the Gigabit Ethernet communication interface. GigE Vision is the first standard to allow for fast image transfer using low-cost standard cables, even over long distances. With GigE Vision, hardware and software from different vendors can operate seamlessly over Gigabit Ethernet connections.

GenICam™ protocol support
The goal of GenICam is to provide a generic programming interface for all types of cameras. Regardless of interface technology (Gigabit Ethernet, Camera Link, IEEE-1394 etc) or features implemented, the Application Programming Interface (API) will always be the same. The GenICam protocol also makes it possible to use third-party software with the camera.

Compatible with ViperVenom camera enclosures
The ViperVenom series of camera enclosures meet standards for an IP67 rating, and additional options are available for customization to your environment.
