Magnetics Kool Mµ - Model Cores -Affordable FeSiAl Material for Low Losses at Elevated Frequencies
Kool Mµ material’s low loss and relatively high saturation level (10,500 gauss) make it excellent for use in power factor correction circuits (PFC) as well as unidirectional drive applications such as Pulse Transformers and Flyback Transformers. The near zero magnetostriction makes Kool Mµ (sendust) ideal for eliminating audible frequency noise in In-Line Noise Filters and Inductors. View PFC Boost design example using Kool Mu.
Large Kool Mu Toroids
Five large sizes have been added to the Kool Mu toroids, including the massive 165 millimeter core. Large Powder Core toroids are a cost-effective option for high current applications, such as UPS, large Power Factor Correction (PFC) chokes and inverters for renewable energy.

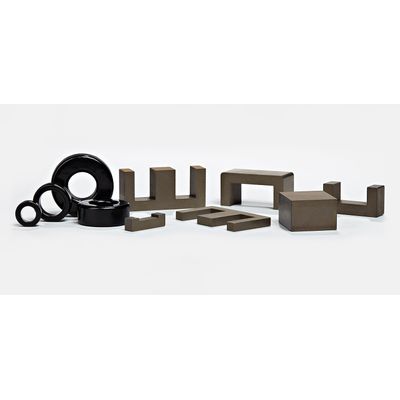

Kool Mu Shapes
Kool Mu Shapes (Toroids, E, U, EQ, LP, EER, Cylinders, Blocks and Round Blocks) are available in various sizes. These shapes compare favorably with gapped ferrites, powdered iron and silicon steel cores. In addition, for very large core requirements, these large shapes can be configured and bonded for a number of custom designs.
Property Curves
View Kool Mµ Material Property Curves including Normal Magnetization curves, Core Loss Density curves, Permeability versus Temperature curves, Permeability versus DC Bias curves, and Permeability versus Frequency curves.
