AFIMOMuPVC Housing

FromAFIMO
SHARE

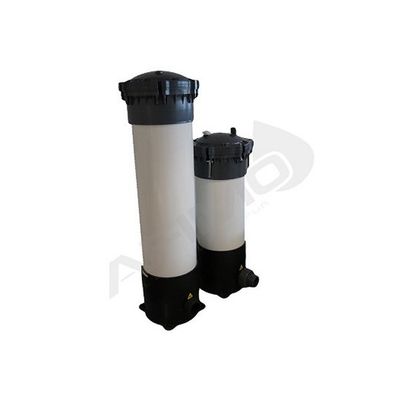

In 2015, AFIMO presents the MuPVC housing, real multi cartridge base of 3,5 and 9 element filters. These products respond to a request for reduction of installation costs, the filtration sequence does not require housings in stainless steel. They will bring a filtering security with controlled operating pressure below 6 bar (hammer-free), and with pre-filter cartridges without the risk of high differential pressure.

Most popular related searches
  • media :  U-PVC
  • Lenght : 10’’ to 40’’
  • number of cartridges: 5 and 9,  3 on request
  • FLow rate 3m3/h to36m3/h
  • I/O: DN 50
  • Max Pressure.     :    < 6bars
  • Max Temperature. : 40°C
  • CLosure : bolts  SS 316L
  • Options :  Manometers on request
  • Type of cartridge : OD 65 to 70mm
  • Fixing: on the floor
