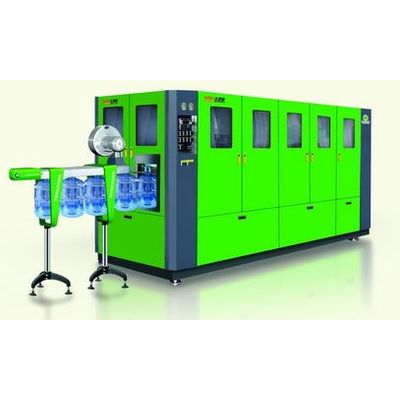

Afripack - Model HZ-120 -5-Gallon Automatic Blow Mouding Machine
Saving the investment on the ordering-bottle machine.Adopting high technology Mincro PLC controller. Ensure the machine working properly and stable. Preheater use single unit rotation heating design.preform heating center distance smaller, heatingspeed more faster,compare to old design with double unit rotation heating design . Electricity save 30% Special mould locking system enables faster mould locking while saves the air source a lot.
Most popular related searches
- Material / PET
- Volume L 10—25
- Theoritical output Pcs/h 100—120
- Neck size mm 50—60
- Max.length mm 450
- Clamping force KN 500
- Power KW 45
- Voltage/Frequency V/HZ 220-380V / 50-60HZ
- Working pressure MPa 0.8—1.0
- Blowing pressure MPa 3.0
- Chilled water rate L/min 20
- Main body dimension(LxWxH) M 3.7 x 1.6 x 2.2
- Main body weight T 3.5
