ISOPur - Model LR CMU & HR CMU -Agglomerator
Improves filtration. Sludge/varnish prevention. Optional HR pump/motor. Flow rates to 20+ gpm. Agglomerates small particles into filterable size. Removal of ferrous and non-ferrous contaminant. Improves water and air separability.
Most popular related searches
air separator
flash point
air separation
contaminated water
particle filter
water optimization
particle sizing
water contamination
contaminated air

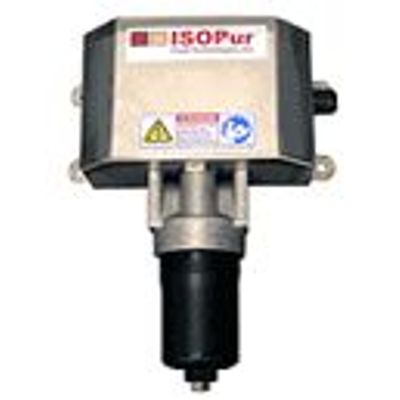

LR CMU Specifications
- Flow Rate : 35 to 150 gph (133 to 568 lph)
- Dimensions : 12.5 in x 10in x 4.2in (31.8 cm x 25.4 cm x 10.7 cm)
- Max. Fluid Pressure : 300 PSIG (20 Bar)
- Fluid Pressure Drop : 25 PSID (1.7 Bar)
- Fluid Temperature* : 40 to 200˚F (4.4 to 93˚C)
- Fluid Viscosity* : 2 to 220 cSt @ 40˚C
- Fluid Flash Point : >140˚F (60˚C)

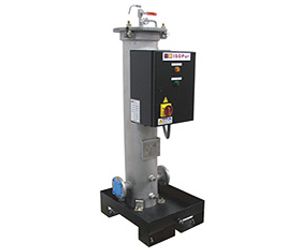

HR CMU Specifications
- Flow Rate : 600 to 1200 gph (2300 to 4500 lph)
- Dimensions (no pump) : 57in x 22in x 18in (145cm x 56cm x 46cm)
- Dimensions (with pump) : 58in x 34in x 26in (173cm x 86cm x 66cm)
