Agreto - Drive-Over-Scale

SHARE

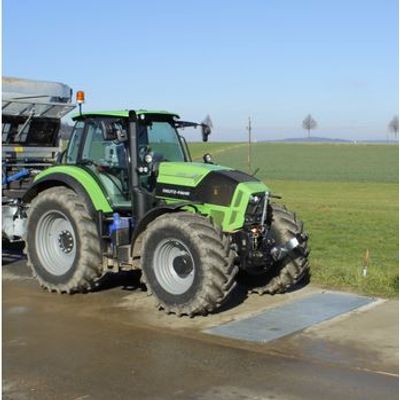

The AGRETO drive-over-scaleis the most cost effective way for weighing trucks and agricultural vehicles without limitation.

Most popular related searches
load cell
weighing terminal
axle scale
welding protection
weighing system
waterproofing
cell barrier
axle weighing
weighbridge software
weighbridge

Robust and practical

The weighing platform is galvanized and has a carrying capacity of 15 t per axle. The scale is waterproof and 4 weighing cells with a 10 t nominal load each ensure it`s overloadproof as well.

Automatic weighing while in motion

The AGRETO drive-over-scale weighs the axle load of several vehicles that move over the platform. Axle loads are automatically added to calculate total weight. You don`t have to stand still or get out of your vehicle, and you don`t need extra personnel like you do with a weighbridge. PC software automatically logs all weighing data.

Reliable axle recognition

The AGRETO drive-over-scale`s light barrier system identifies tyre size, wheelbase, driving direction and driving speed. This enables exact and error-free weighing of large tractor rear tyres, as well as all axle combinations (tandem, tridem axles).

Control with PC software or weighing terminal

Optionally, the AGRETO over-ride scale can be operated with the new AGRETO weighing terminal or with a PC and the PC software. Please select as accessory either the terminal or the software control.

Delivery contents:

  • 1 weighing platform with electronics box, weighing equipment and legs
  • 10 m connecting cable for PC, with plug and power supply unit
  • 1 USB-RS232 converter
  • 1 construction manual with foundation plan and reinforcement plan
  • 1 User manual

Weighing platform:

  • Galvanized steel construction made of 3 robust I-beams and reinforcing elements
  • 2 side panels for load cell mounting
  • Antiskid checker plate cover with maintenance cap
  • Platform size: 100 cm x 320 cm
  • Welded protective housing for the light barriers

Load cells:

  • 4 high-resolution shear force load cells made from tool steel
  • 10 t nominal load per cell, 150% secure overload = 15 t, 300% breaking load = 30 t
  • 5-12 Volt power supply, 350 Ohm resistance
  • Waterproof according to protection class IP68
  • 2 x M27 mounting screws, suspension for load foot
  • Dimensions: 60 x 67 x 279 mm
  • Operating temperature -35 to +65 °C
  • Temperature compensated -10 to + 40 °C

Electronics:

  • Waterproof electronics box under the maintenance cap of the weighing platform
  • A/D-converter with serial data transfer to the PC
  • Connecting terminals for 4 weighing cells and 2 light barrier pairs
  • Screw plug for hooking up the connecting cable to the PC
  • 5-pole shielded connecting cable to the PC for data transfer and power supply
  • 10 m standard cable length, extensible up to 100 m
  • 24 Volt transformer power supply unit for a reliable power supply

Installation requirements:
When choosing a location for your scale, make sure that the area for approaching and exiting the scale is as even as possible, for the entire length of the vehicles that need to be weighed (30 to 32 m in total for semi-trailer trucks). Ideally this roadway is level in all directions. A slight slope to the side or upwards in the driving direction is acceptable, when this slope is exactly the same everywhere on approach, scale and exit. For weighing multiple axles we advise the construction of a concrete slab at least 3 m before and after the weighing platform. The approach and exit are essential parts of the scale and must be constructed with care. In practice, proper installation and use will guarantee only minimal deviations from a calibrated weighbridge.
