AgriChem - Model FP-21C -Flush Mounted On-Line Moisture Sensor
The FP-21C is designed as a flush-mounted on-line moisture sensor contributing to the accurate and continuous measurement of moisture content in various granular materials. It operates using proven capacitive moisture sensing technology in a flat plate configuration, enabling installation in mixers, augers, chutes, or sleds. This sensor features an industry-standard M12 connector, enhancing installation ease and enclosure durability. With ceramic wear surfaces, it offers long-lasting performance and comes with a stainless hinged plate mount for various mounting options. It also includes a temperature probe for precise temperature measurement and a weather-resistant enclosure. Its outputs provide analog moisture and temperature readings that can be displayed on AgriChem's Moisture Display System or integrated into a process control system, supporting optimization in diverse industrial applications.
- Accurately monitors moisture content in grains and other particulate materials
- Designed for physically hostile environments such as mixers, chutes, conveyors, and augers
- Reliable, rugged, economical solution for moisture monitoring applications
- Easily integrated into process control systems
FP Series sensors feature proven capacitive moisture sensing technology in a flat plate configuration. This allows its mounting in a mixer, an auger, a chute, or a sled riding on granular material being transported by a belt conveyor for continuous measurement of moisture content.
Its analog moisture and temperature outputs can be displayed on our Moisture Display System (MDS) and/or transmitted for integration into a process control system.
MEASUREMENT ACCURACY
- Particulate sample temperature : ±1°F
- Particulate moisture content (typical) : ±0.25%
OUTPUTS
- Moisture : 0 to 5VDC
- Temperature : 0 to 2VDC
OPERATION
- Minimum sample depth : 4 inches (10 cm)
- OPERATIONAL TEMPERATURES
- Sensor, ambient : -40°F to 155°F
- Particulate sample : 0°F to 100°F (Others optional)
ELECTRICAL POWER
- Required : 10VDC to 12VDC
- Consumption : 2 Watts maximum
PHYSICAL SIZE
- Surface dimensions (inches) : 4.625 X 7.625
MATERIALS OF CONSTRUCTION
- Sensor face : Ceramic
- Sensor body : Electroless nickel-plated aluminum
OPTIONS
- Sensor body : 316 Stainless Steel
- MDS operator interface : Can serve one or two sensors
- Defined Area Flow Restrictor (DAFR) : For chute mounting
- Sled mount : For belt conveyor mounting

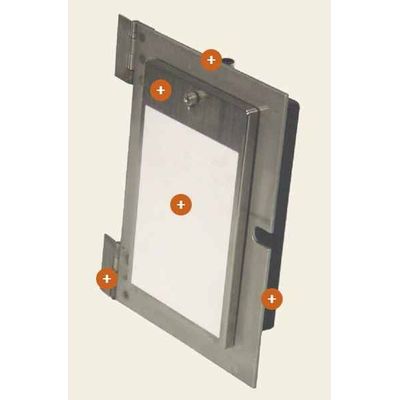

- Hinged door mount (shown) : For mixer or auger mounting
