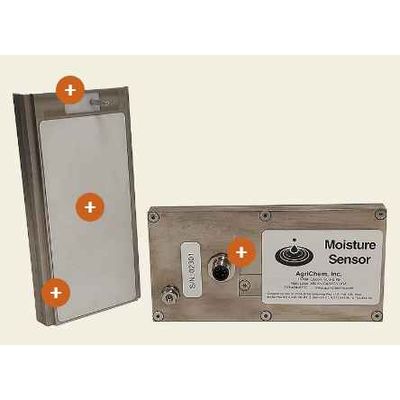

AgriChem - Model FP-32C -Flush Mounted On-Line Moisture Sensor for Granular Materials
The FP-32C Flush Mounted On-Line Moisture Sensor is a device optimally designed for integration into industrial processes where precise moisture measurement is critical. It uses a patented capacitive flat plate design suited for challenging environments such as mixers, augers, or chutes. The robust construction features a ceramic sensing face and stainless steel front, offering durability against corrosion and mechanical wear. The sensor is equipped with an industry-standard M12 connector for easy installation and reliable operation. Additionally, it includes a temperature probe for concurrent accurate temperature readings. The sensor's outputs can be displayed locally or transmitted as analog signals to integrate into broader process control systems, making it a flexible solution for moisture and temperature monitoring in industrial settings.
- Monitors particulate moisture content in physically hostile environments such as mixers, chutes, belt conveyors, and augers
- A reliable, economical solution for many moisture monitoring problems
The FP Series Flush Mounted On-Line Moisture Sensors are designed specifically for mechanically hostile environments and feature proven capacitive moisture sensing with a patented flat plate configuration. This allows sensing of granular materials in a mixer, an auger, or a chute.
Sensor output can be displayed on local display and/or transmitted as an analog signal for integration into a process control system. Temperature data are also readily available.
MEASUREMENT ACCURACY
- Particulate sample temperature : ±1°F
- Particulate moisture content (typical) : ±0.25%
OUTPUTS
- Moisture : 0 to 20 mA
- Temperature : 0 to 20 mA
OPERATION
- Minimum sample depth : 4 inches (10 cm)
OPERATIONAL TEMPERATURES
- Sensor, ambient : -40°F to 180°F
- Particulate sample : 0°F to 150°F
ELECTRICAL POWER
- Voltage : 12 to 24 V DC
- Consumption : 3 Watts maximum
PHYSICAL SIZE
- Surface dimensions (inches) : 3.000 X 6.000
MATERIALS OF CONSTRUCTION
- Sensor surface : Ceramic
- Sensor body : Hardcoat Anodized Aluminum
OPTIONS
- Particulate temperature sensing up to 250° F
- Abrasion resistant and stainless steel options
- MDS Control/Local Display, can operate 1 or 2 sensors
