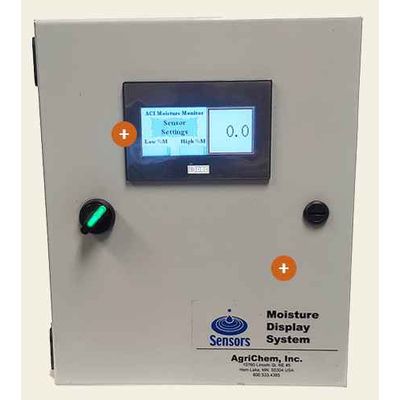

AgriChem - Model MDS -Moisture Display System for Sensor Programming
The Moisture Display System (MDS) is an advanced tool designed to provide real-time display and data input capabilities for moisture measurement through its integrated LCD display and 16-key keypad. The system is engineered to support the programming of two separate sensors, allowing for versatile applications in environments requiring precision moisture control. This adaptability makes it useful in various industries, especially agriculture, where monitoring moisture levels is critical in optimizing product quality and preservation. The MDS system ensures reliability and ease of use, offering a practical solution for detecting and responding to moisture fluctuations which can affect processes and material integrity.
- Operator interface for FT-11C and FP-21C Moisture Sensors
- Can serve two sensors
- Continuously displays material type, moisture content, alarm status and temperature
- Can be calibrated for six separate particulates and/or powder materials
- Provides high/low alarms for both moisture content and temperature
- Can be integrated into a process control system with optional analog output board to transmit sensor data to a computer or PLC
- Records average moisture content and total processing time for each product monitored
COMPONENTS
- LCD display
- 16 key keypad
- MDS board with integrated power supply
- Two dry contact relays and signal conditioning for FT-11C and FP-21C moisture sensors
OUTPUTS
- Temperature : ±1°F
- Moisture : ±0.25%
OPTIONS
- Analog output board : 0 to 2.5VDC and 4 to 20mA
OPERATIONAL TEMPERATURES
- Ambient : -40°F to 120°F
ELECTRICAL POWER
- Required : 120VAC standard, 240VAC optional
- Consumption : 9 Watts
