Agriclé - Volumetric Dosing Pump, High Flow, Mixtron, 2500 l/h

SHARE

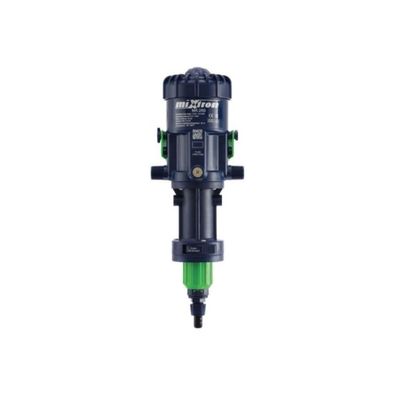

Installed on the water network, the Mixtron volumetric dosing pump, model MX.250.P022, is an efficient system suitable for mixing liquids in agricultural and horticultural crops. Does not require a power supply (powered only by water).

Most popular related searches
dosing pump
water flow rate
hydraulic dosing pump
water flow rating
water network
water pump
water powered pump
  • It is also suitable for administering nutrients, vitamins, antibiotic treatments, vaccines, nutritional supplements, etc. in the right quantities to promote optimal animal health.
  • This water dosing pump has greater precision and consistency, regardless of variations in flow and pressure.
  • Quick and easy to install.
  • Low maintenance hydraulic dosing pump.
  • Resistant to chemicals.
  • Product made in Italy.

  • Adjustable dosing ratio: 0.2 to 2% of the water flow rate
  • Operating pressure: 0.3 – 6 bar water pressure
  • Maximum water temperature: 5 – 40°C
  • Process connexion: 3/4" BSPT Male
  • Variable water flow from 10 to 2500 L/h, 2.5 m3/h max)
  • Plastic materials: POM, PP, HDPE, PA12 seals
  • Metal components: AISI 316, Duplex
  • Seals: Viton, EPDM
  • IP classification: IP68 (mounting out of direct sunlight)
  • Powered dosing pump includes mounting bracket, 59” suction tube and foot filter
  • Wall or suspended installation.
  • Dimensions: 23`` x 8`` x 6`` (58 × 20 × 15 cm)
