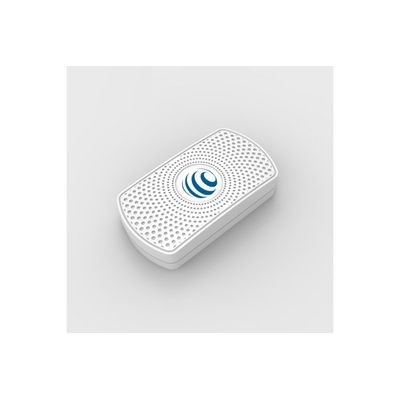

AGrowTronics - Model AG-B-TH-1 -BLE Temperature and Humidity Sensors
The AGrowTronics BLE Temperature and Humidity sensors is a BLE device that incorporates into the AGrowTronics Greenhouse system. This sensor can be used in conjunction with any of the AGrowTronics Wi-Fi BLE gateway products. Using the AGrowTronics Mobile Application the device is easily added to the Greenhouse Sensor Network. Simply scan the QR code on the device or product packaging and the AGrowTronics Mobile application will automatically add this to the system.
The AGrowTronics BLE Temperature and Humidity sensors is a BLE device that incorporates into the AGrowTronics Greenhouse system. This sensor can be used in conjunction with any of the AGrowTronics Wi-Fi BLE gateway products. Using the AGrowTronics Mobile Application the device is easily added to the Greenhouse Sensor Network. Simply scan the QR code on the device or product packaging and the AGrowTronics Mobile application will automatically add this to the system.
The device feature user selectable polling and logging rates. Additional facilities in the AGrowTronics Clould system allow the user to set critical notification levels for Temperature, Humidity, and Battery Level.
The AGrowTronics system reports Temperature in a user selectable format of Celsius or Fahrenheit.
Operating Temperature Range: -40°C~+125°C ± 0.3°C / -40°F~+257°F ± 0.5°F
Operating Humidity Range: 0~100%RH ±3%RH
The device can be used to monitor:
- Greenhouse Temperature & Humidity
- Reptile Habitats & Enclosures
- Bluetooth Low Energy
- 2.4 GHz General ISM band
- Long Distance Communication
- Built in High Sensitivity Temperature and Humidity sensor
- 3V user replaceable built in battery
- Expected 1.5 Year Battery life with normal operation
- Can store up to 12,000 data points internally
- Frequency Range : 2.400 - 2.4835GHz
- Protocol Standard : Bluetooth 4.0
- Modulation Format : GFSK
- Minimum Send Interval : 500mS - User Adjustable
- Integrated Battery : 600mAh /3V
- Output power : 0dBm,adjustable
- Communication rate : 1Mbps
- Range : 50 Meters/160ft
- Receiver Sensitivity : 1Mbps@-85dbm
- Battery Life : 1.5 Years - User replaceable
- Weight : 25g/1oz
- Dimensions : 67mm * 51mm * 15mm / 2.6" * 2.0" * 0.6"
- Temperature Range : -40°C~+125°C ± 0.3°C / -40°F~+257°F ± 0.5°F
- Humidity Range : 0~100%RH ± 3% RH
- Data Logging capability : 12,000 entries
