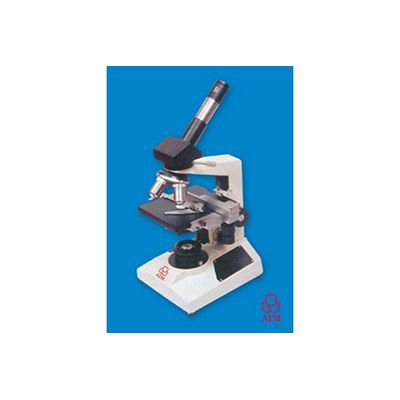

AIM - Monucular Research Microscope

A unique research monocular 45 deg. Inclined microscope rotatable through 360 deg. With adjustable locking device. The Head is interchangeable with Binocular or Trinocular head as optional. Single piece die cast arm & large size rectangular, heavy base fitted with Transformer & electricals. Quadruple revolving nosepieces, built in graduated coaxial mechanical stager (size 135mm x 120mm) for easy slide manipulation & focusing by vertical movement of stage, coarse adjustment by rack pinion & fine sensitive focusing by screw lever reading to 0.002mm. Bright field, Abb`s N.A. 1.3 condenser with iris-diaphragm & filter holder, focusable by rack-pinion, Illumination by 6V - 20W Halogen lamp fitted under the field lenses operated through transformer. Mirror attachment is also provided (for day light working).
