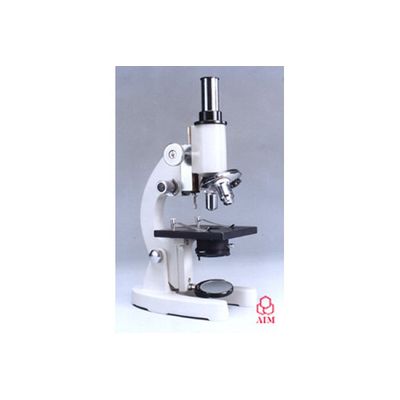

AIM - Student Microscope

Aluminum die cast base. Monocular body inclinable up to 90³. Mechanical tube length 160 mm, triple revolving nosepiece, fixed square stage 120 mm with stage clips, fixed condenser (N.A. 1.2) with iris-diaphragm & filter holder, Focusing by vertical movement of body tube, coarse adjustment by rack-pinion movement. Fine adjustment by screw-level mechanism. Illumination by Plano Concave mirror dia 50 mm. Adjustable down stopper to prevent breakage of the specimen slides. Optics : Ach. Objectives : 10x & 40x or 45x. Huy. Eye piece : 5x, 10x & 15x. Supplied with Dust cover, Duster, filter & operating manual in styrofom case.
