ZCJSD - Model JSD/GF150 -Air Bearing Turbo Blower
Shijiazhuang Kingston Bearing Technology Co, Ltd (Manufacturer of Turbo Blower ZCJSD) is established in 2007 focusing on R&D, production and sales of high speed rotation bearing, dynamic air bearing, high speed motor and high speed turbo blower. Our business: 1?R&D and production of air bearing and high speed motor. 2?R&D, production and sales of air suspension turbo blower. 3?R&D, production and sales of hydrogen fuel cell air compressor.
150HP-0.6 Technical Parameter
Blower:
Item
Unit
Parameter
Model
JSD/GF150-0.6
Manufacturer
ZCJSD
Medium
Air
Dimension
mm
2050X1030X1675
Maximum Hoist Weight
Kg
930
Civil Work Capacity
Kg
1400
Outlet Pipe
DN300
Installation Height
mm
80
Installation
Indoor
Cooling
Air Cooling
Impeller
Single Stage
Bearing
Dynamic Air Bearing
Bearing Service Life
20000 Starts
Drive
High Speed Permanent Magnet Motor
Control
VFD
VFD Brand
PE or Vacon
Material
Widely used for WWTP STP.
Turbo blower for cement plant
Turbo blower ZCJSD at Changsha Exhibition

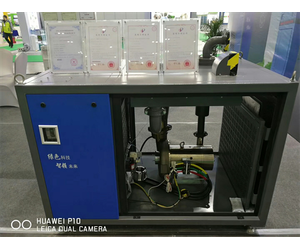

Turbo blower ZCJSD at China Western Exhibition
Turbo Blower ZCJSD at Jinyu Cement plant

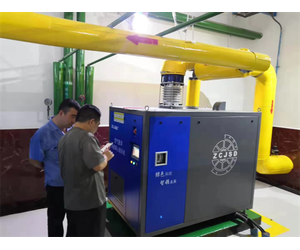

Turbo blower ZCJSD at printing and dyeing mill
Turbo blower ZCJSD at Shanghai Exhibition
