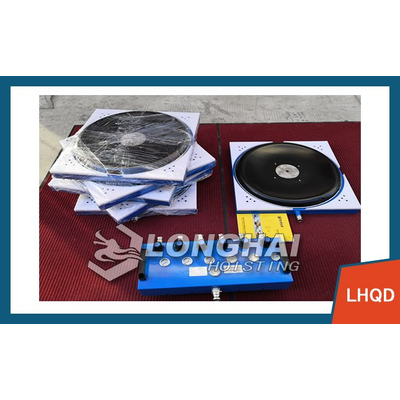

LongHai - Model LHQD-B (54 Ton) -Air Casters

SHARE

Air Casters,(also can be called Air Bearings,Air Pallets,Air Skates,Air Lift Casters,Air Bearing Movers,Air Cushion,Air Caster Rigging)are a kind of pneumatic device which can form a lubricating film of air between the load and floor surface,used to move heavy equipments on flat, non-porous ground. Thus,the friction between the ground and the equipments becomes very small,we can move the heavy loads in any direction. In fact,Air Casters used in sets of four or more.

Most popular related searches
compressed air
air regulations
hazardous area
expansion joint
axial air mover
workplace air
pallet lift

This new model is our NEW upgrade model of 2019 !!

Bigger capacity !Smaller air consumption !! Longer life !!!

Notice of Using Air Casters:

  1. Air casters require a smooth, non-porous,sealed ground-Cracks and other surface defects can interrupt the proper flow of air, Polyurethane floor is the ideal work surface of Air Casters. Repair for some large cracks and filling expansion joint may be needed, we can also use sheet metal or a heavy gauge plastic sheet material on the uneven ground.
  2. The ground should be dry enough.or the Air Casters could be too flexible to control.
  3. An external air supply source is necessary.The main gas supply flow should be at least 3 m3/ min.
  1. Air Casters is made of four Load Modules.When using,connect the Air  Regulator with Compressed Air Source using Main Hose.
  2. Put the Load Modules under the euqipments at a reasonable layout.
  3. Then adjust the Main Gas Supply Flow.Pull out of the Regulator Knob  Cap, clockwise to increase pressure and counter-clockwise to decrease  the pressure( note : the pressure of each Load Modules does not exceed  0.35Mpa.If the supply pressure is too large, will cause vibration), after rising  of the Load Modules, lock each Regulator Knob Cap, then you can move  the equipments.
  4. After the moving work is completed,not to turn off the Compressed  Air Source.Please firstly make the equipments touch the ground.Then  turn off the Compressed Air Source.
  5. In the end, release the air in the Air Regulator and hoses
  1. Offers versatile positioning to fit almost any load.
  2. Movement and positioning of the Air Casters are easy,the shake of the equipment is small.
  3. Small pressure on the ground,Air Casters will not damage the ground.
  4. Spark-free operation.use Air Casters in hazardous areas is available. 5,Simple maintenance and environmental.
