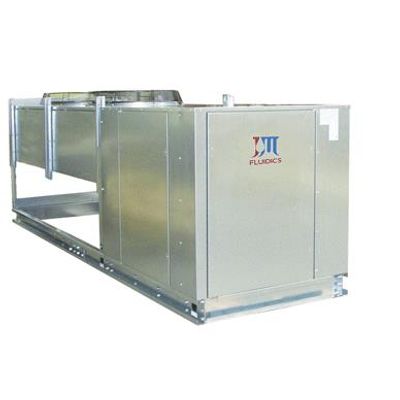

JM Fluidics - Air-Cooled Digital Scroll Process Chiller
J&M Fluidics` Air-Cooled Digital Scroll Process Chiller Product Line is ideal for residential, industrial and refrigeration process cooling applications that require VERY stable temperatures and energy efficiency. Available in 4.0 to 120.0 HP. Chillers are also available in split condenser configurations. STANDARD ON ALL J&M MODELS: Pentra Microsmart, Programmable Logic Controller (PLC) with HMI Touch Screen Display.
Most popular related searches
water flow metering
water pressure gauge
water flow switch
water flow meter
reverse osmosis water
stainless steel tank
programmable logic controller
process pump
scroll chiller
air cooled chiller
- Cooling capacities from 1 ton to 91 tons
- Single or Dual Copeland Digital Scroll Compressors
- LCD Touchscreen Controller
- Tankless, Stainless Steel Tank or Polyethylene Tank
- ETL listed to UL1995 & CAN/CSA C22.2 No. 236-11, 4th edition, 10/14/2011
- Single Point Power Connection
- Idec microprocessor controller with easy to use touch screen display
- STAINLESS STEEL, brazed plate evaporator
- Scroll compressor with crankcase heater
- Suction Accumulator
- Water flow switch
- Hot Gas Bypass Capacity Control
- 24V control transformer
- Control circuit fusing
- Condenser(s): Coaxial up to PZW22D
- Condenser(s): Shell and Tube PZW26D through PZW52D
- Compressor motor contactor
- Painted - Powder Coated (Most Models), galvanized sheet metal cabinet
- 1/2” insulation on all water and refrigerant lines
- Liquid line drier, sight glass, solenoid, TXV
- Complete refrigerant charge from factory
- Remote Idec touchscreen control panel
- Industrial VPN Router
- 5 Port Ethernet Switch
- BacNet Gateway
- Process Pump VFD Controller
- 4 year extended compressor warranty
- Casters (factory mounted)
- Condenser water regulating valve
- 115 volt (rain tight) service outlet
- Non Fused Disconnect
- Phase Monitor, line voltage monitor offering protection against phase loss/reversal, unbalance and hi/lo voltage
- Compressor fusing
- Compressor Sound Cover
- Factory installed evaporator heat tape freeze protection
- Low flow by-pass valve
- Fused, STAINLESS STEEL process pump
- Dual system pump with manual changeover (some models)
- Dual system pump with auto changeover (some models)
- Pump suction isolation valve
- Water pressure gauge set
- Water Flow Meter
- Auto city water changeover panel with filter
- Stainless steel, SCH80 PVC or Polypropylene piping for deionized and reverse osmosis water systems
